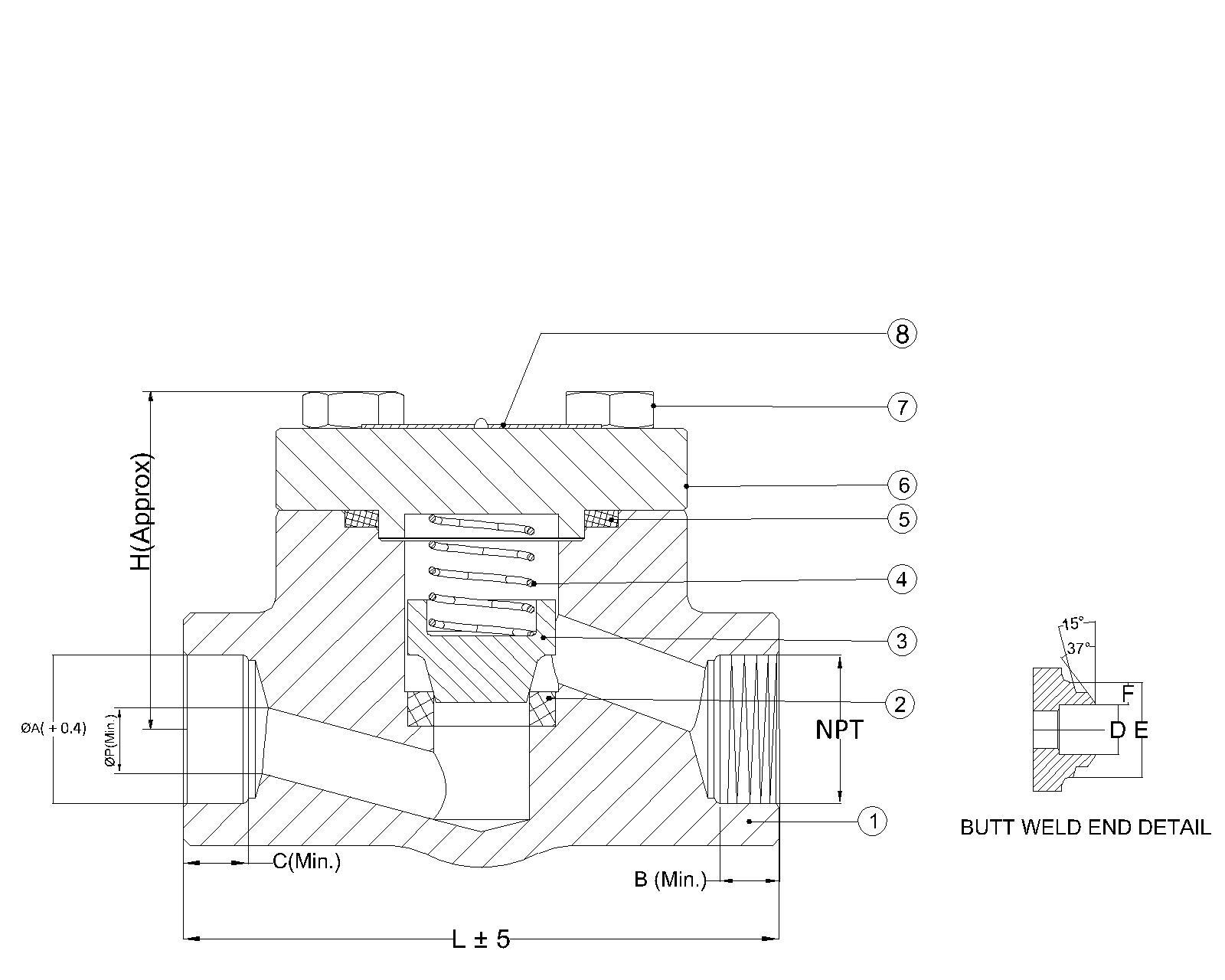

FORGED LIFT CHECK VALVE 800# DIMENSION
|
| SIZE |
L |
øP |
C |
B |
øA |
H |
BUTT WELD SH-40 |
BUTT WELD SH-80 |
BUTT WELD SH-160 |
| D |
E |
F |
D |
E |
F |
D |
E |
F |
| 10MM |
87 |
6.5 |
9.5 |
14 |
17.6 |
51 |
12.5 |
17.1 |
2.31 |
10.7 |
17.1 |
3.2 |
– |
– |
– |
| 15MM |
87 |
9.5 |
9.5 |
14 |
21.8 |
51 |
15.8 |
21.3 |
2.77 |
13.87 |
21.3 |
3.73 |
11.79 |
21.3 |
4.78 |
| 20MM |
92 |
12.7 |
12.5 |
16 |
27.2 |
54 |
20.93 |
26.7 |
2.87 |
18.85 |
26.7 |
3.91 |
15.55 |
26.7 |
5.56 |
| 25MM |
106 |
17.5 |
12.5 |
22 |
33.9 |
60.5 |
26.65 |
33.4 |
3.38 |
24.31 |
33.4 |
4.55 |
20.7 |
33.4 |
6.35 |
| 32MM |
127 |
23 |
12.5 |
22 |
42.7 |
106 |
35 |
42.2 |
3.56 |
32.46 |
42.2 |
4.85 |
29.46 |
42.2 |
6.35 |
| 40MM |
127 |
28 |
12.5 |
25 |
48.8 |
106 |
40.9 |
48.3 |
3.68 |
38.1 |
48.3 |
5.08 |
34 |
48.3 |
7.14 |
| 50MM |
142 |
30 |
16 |
26 |
61.2 |
109 |
52.5 |
60.3 |
3.91 |
49.2 |
60.3 |
5.54 |
42.8 |
60.3 |
8.74 |
FORGED LIFT CHECK VALVE 1500# DIMENSION
|
| SIZE |
L |
øP |
C) |
B |
øA |
H |
BUTT WELD SH-40 |
BUTT WELD SH-80 |
BUTT WELD SH-160 |
| D |
E |
F |
D |
E |
F |
D |
E |
F |
| 10MM |
87 |
6.5 |
9.5 |
14 |
17.6 |
51 |
12.5 |
17.1 |
2.31 |
10.7 |
17.1 |
3.2 |
– |
– |
– |
| 15MM |
92 |
9.5 |
9.5 |
14 |
21.8 |
54 |
15.8 |
21.3 |
2.77 |
13.87 |
21.3 |
3.73 |
11.79 |
21.3 |
4.78 |
| 20MM |
106 |
12.7 |
12.5 |
16 |
27.2 |
60.5 |
20.93 |
26.7 |
2.87 |
18.85 |
26.7 |
3.91 |
15.55 |
26.7 |
5.56 |
| 25MM |
127 |
17.5 |
12.5 |
22 |
33.9 |
106 |
26.65 |
33.4 |
3.38 |
24.31 |
33.4 |
4.55 |
20.7 |
33.4 |
6.35 |
| 32MM |
142 |
23 |
12.5 |
22 |
42.7 |
109 |
35 |
42.2 |
3.56 |
32.46 |
42.2 |
4.85 |
29.46 |
42.2 |
6.35 |
| 40MM |
142 |
28 |
12.5 |
25 |
48.8 |
109 |
40.9 |
48.3 |
3.68 |
38.1 |
48.3 |
5.08 |
34 |
48.3 |
7.14 |
| 50MM |
178 |
30 |
16 |
26 |
61.2 |
150 |
52.5 |
60.3 |
3.91 |
49.2 |
60.3 |
5.54 |
42.8 |
60.3 |
8.74 |
Technical Specification (Material Data Sheet)
|
| No. |
Description
|
A-105N |
F-304/F304L |
F-316/F316L
|
| 1 |
BODY |
ASTM A105N |
ASTM A182 GR. F304/304L |
ASTM A182 GR. F316/316L |
| 2 |
SEAT RING |
ASTM A479 TYPE SS410 |
ASTM A182 GR. F304 (INT.) |
ASTM A182 GR. F316 (INT.) |
| 3 |
PLUG |
ASTM A479 TYPE SS410 |
ASTM A479 TYPE SS304 |
ASTM A479 TYPE SS316 |
| 4 |
SPRING |
ASTM A313 TYPE SS304 |
ASTM A313 TYPE SS304 |
ASTM A313 TYPE SS316 |
| 5 |
GASKET |
SPW SS316 + GRAPHITE |
SPW SS316 + GRAPHITE |
SPW SS316 + GRAPHITE |
| 6 |
CHECK PLATE |
ASTM A105N |
ASTM A182 GR. F304/304L |
ASTM A182 GR. F316/316L |
| 7 |
HEX BOLT |
ASTM A193 GR. B7 |
ASTM A193 GR. B8 |
ASTM A193 GR. B8M |
| 8 |
NAME PLATE |
STAINLESS STEEL |
STAINLESS STEEL |
STAINLESS STEEL |
|
|
|
|
|
Technical Data (Design & Testing Standard)
|
| Design Standard : |
API 602 / ISO 15761 / ASME B16.34 |
| Testing Standard : |
API 598 / EN 12266-1 |
| Face To Face Standard : |
Manufacturer |
| Socket Weld Standard : |
ASME B16.11 |
| Screwed End Standard : |
ANSI B1.20.1 / ANSI B2.1 |
| Butt Weld Standard. : |
ASME B16.25 |
| Valve Operation : |
Self |
