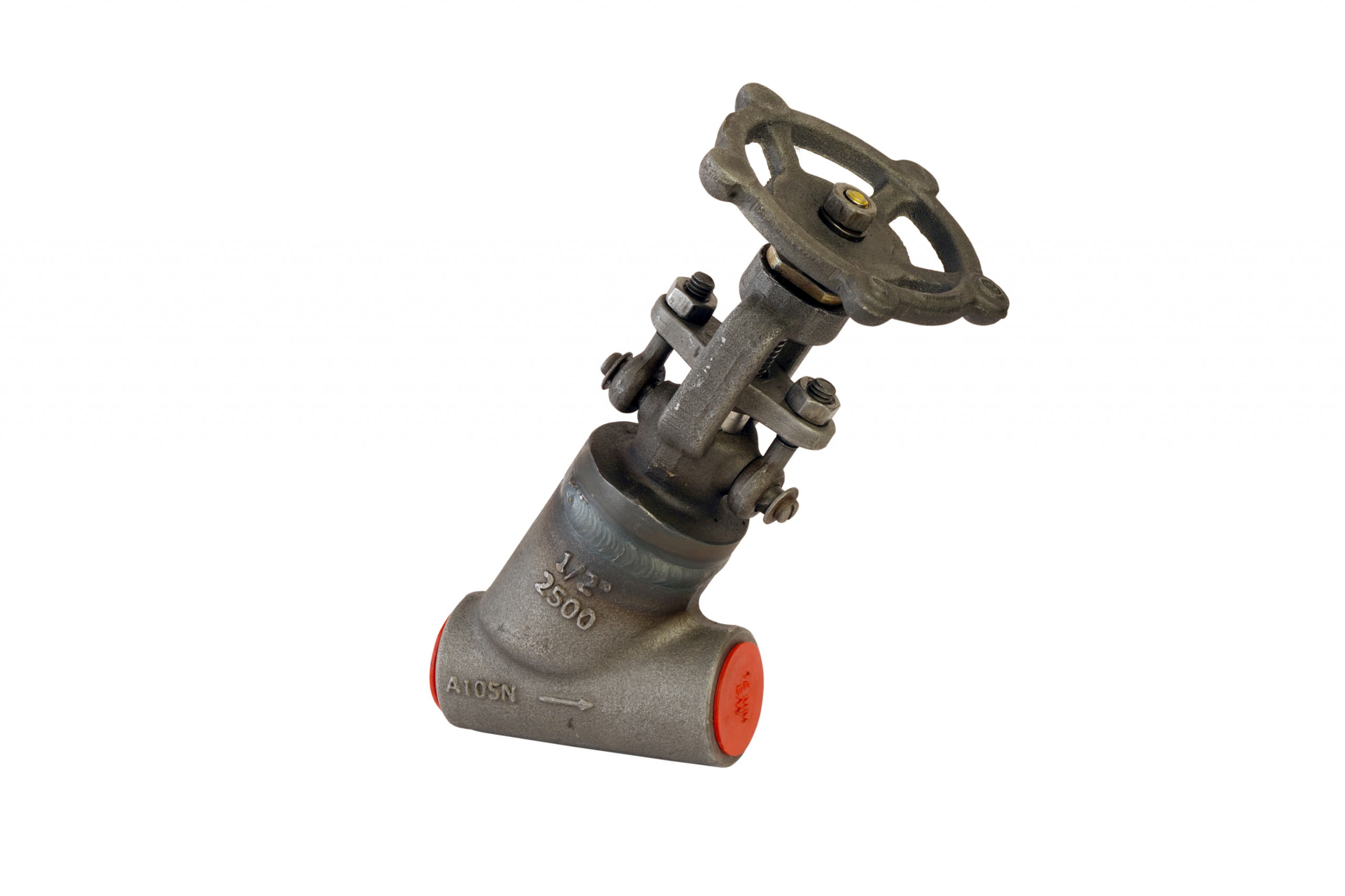

Forged Y-Type Globe Valve

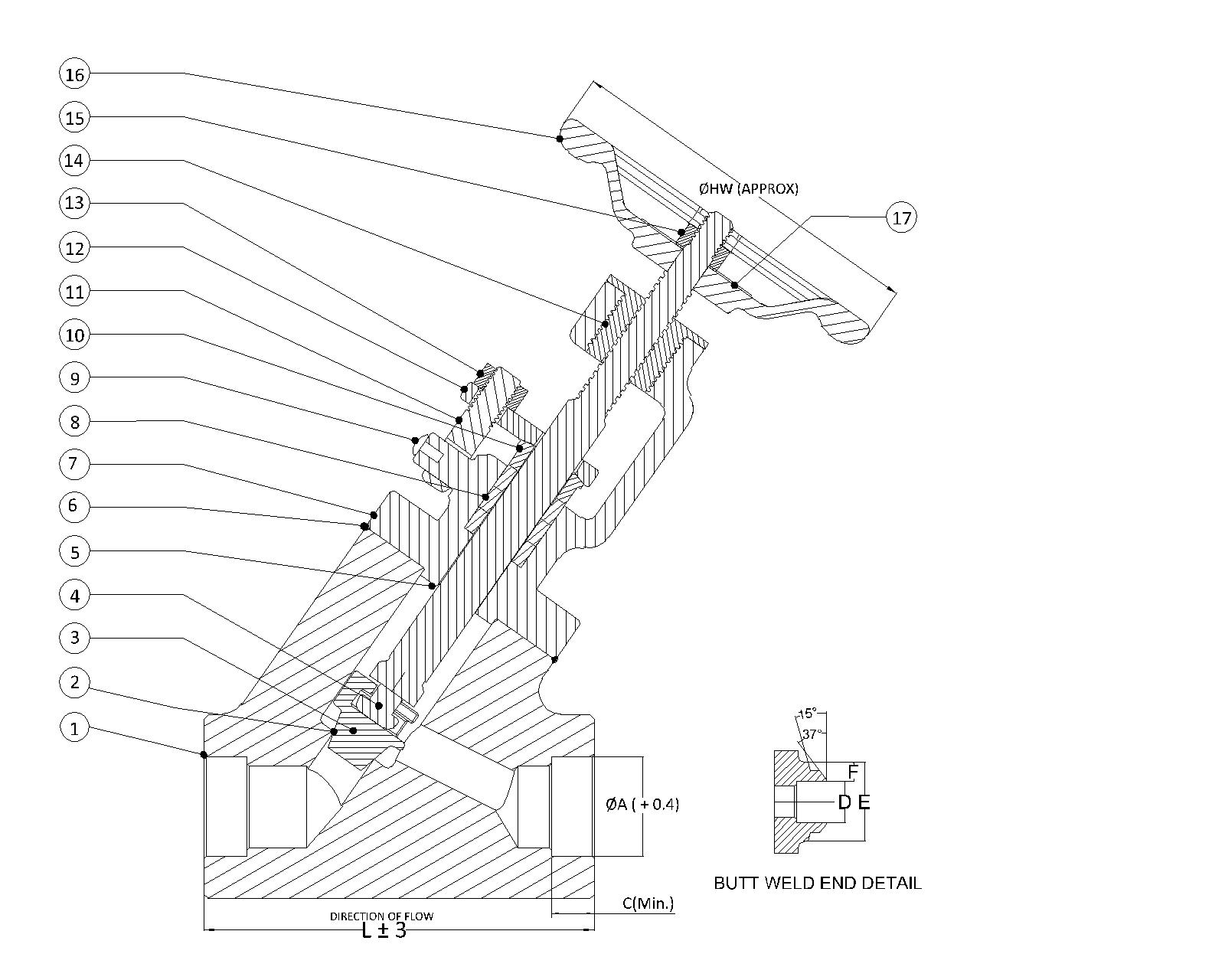

FORGED Y-TYPE GLOBE VALVE 2500# DIMENSION
|
| SIZE |
L |
øP |
C |
øA |
H OPEN |
H CLOSE |
ØWh |
BUTT WELD SH-40 |
BUTT WELD SH-80 |
BUTT WELD SH-160 |
| D |
E |
F |
D |
E |
F |
D |
E |
F |
| 15MM |
87 |
7 |
9.5 |
21.8 |
173 |
168 |
96 |
15.8 |
21.3 |
2.77 |
13.87 |
21.3 |
3.73 |
11.79 |
21.3 |
4.78 |
| 20MM |
92 |
12.5 |
12.5 |
27.2 |
221 |
212 |
150 |
20.93 |
26.7 |
2.87 |
18.85 |
26.7 |
3.91 |
15.55 |
26.7 |
5.56 |
| 25MM |
106 |
15.5 |
12.5 |
33.9 |
230 |
220 |
150 |
26.65 |
33.4 |
3.38 |
24.31 |
33.4 |
4.55 |
20.7 |
33.4 |
6.35 |
| 40MM |
142 |
26.5 |
12.5 |
48.8 |
325 |
310 |
250 |
40.9 |
48.3 |
3.68 |
38.1 |
48.3 |
5.08 |
34 |
48.3 |
7.14 |
| 50MM |
142 |
27 |
16 |
61.2 |
345 |
330 |
250 |
52.5 |
60.3 |
3.91 |
49.2 |
60.3 |
5.54 |
42.8 |
60.3 |
8.74 |

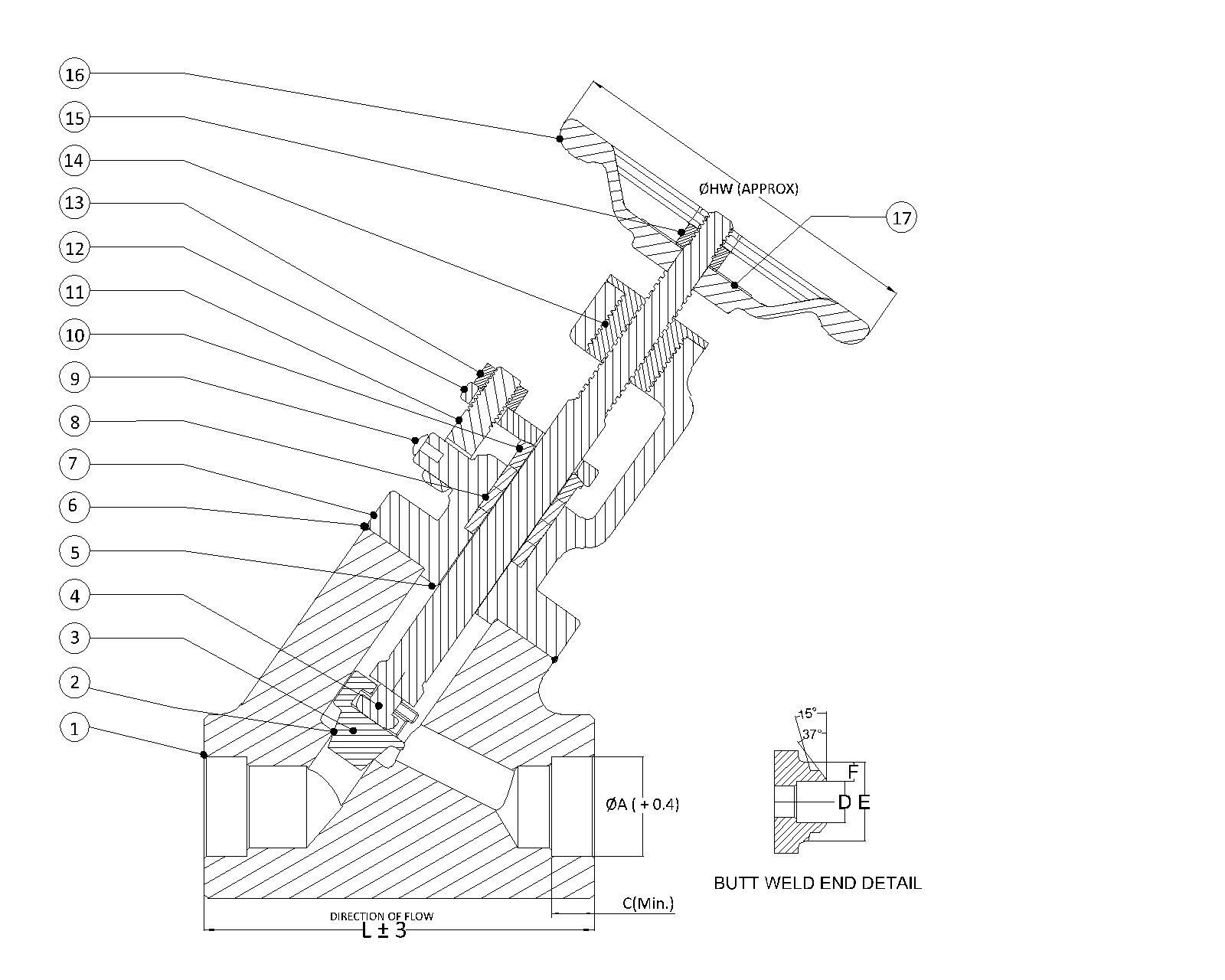

Technical Specification (Material Data Sheet)
|
| No. |
DESCRIPTION |
A-105N |
| 1 |
BODY |
ASTM A 105N |
| 2 |
SEAT RING |
INTEGRAL + ST.6 |
| 3 |
PLUG |
ASTM A 217 GR. CA-15 + ST.6 |
| 4 |
STEM |
ASTM A 479 TYPE SS-410 |
| 5 |
BACK SEAT |
INTEGRAL |
| 6 |
BODY-BONNET JOINT |
WELDED |
| 7 |
BONNET |
ASTM A 105N |
| 8 |
GLAND PACKING |
GRAPHITE RING |
| 9 |
EYE BOLT RAVET |
CS + ZINC PLATED |
| 10 |
GLAND BUSH |
ASTM A 479 TYPE SS-410 |
| 11 |
EYE BOLT |
ASTM A 193 GR. B7 |
| 12 |
GLAND FLANGED |
ASTM A 105 |
| 13 |
EYE BOLT NUT |
ASTM A 194 GR. 2H |
| 14 |
YOKE SLEEVE |
ASTM A 582 TYPE SS-416 |
| 15 |
STEM NUT |
ASTM A 194 GR. 2H |
| 16 |
HAND WHEEL |
SG IRON |
| 17 |
NAME PLAT |
STAINLESS STEEL |
Technical Data (Design & Testing Standard)
|
| DESIGN STANDARD |
ASME B16.34 |
| TESTING STANDARD |
API 598 |
| FACE TO FACE STANDARD |
Manufacturing Standard |
| SOCKET WELD STANDARD |
ASME B16.11 |
| SCREWED END STANDARD |
ASME B1.20.1 |
| BUTT WELD STANDARD |
ASME B16.25 |
| VALVE OPERATION |
HANDWHEEL OPERATED |
| CLASS |
2500# |
