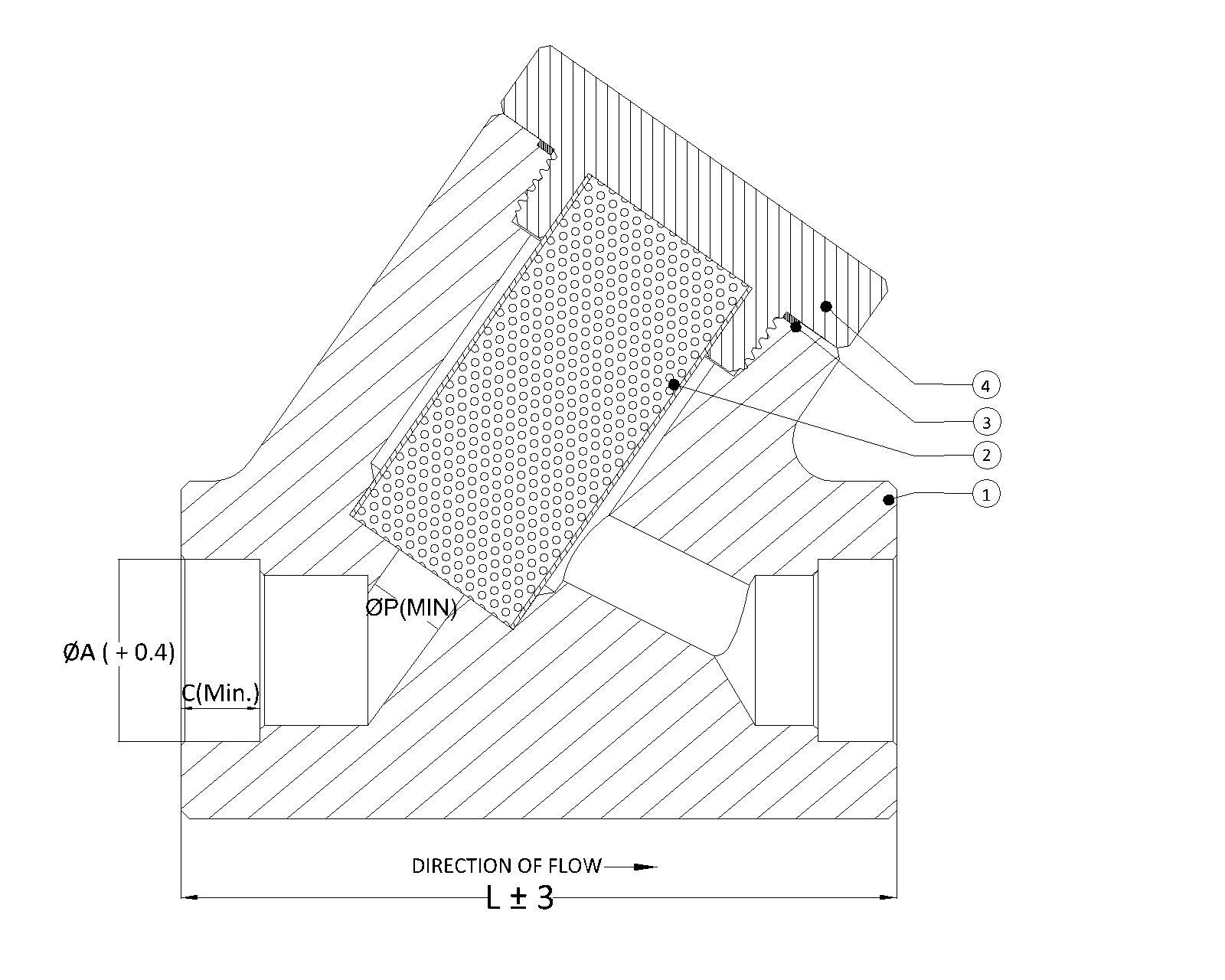

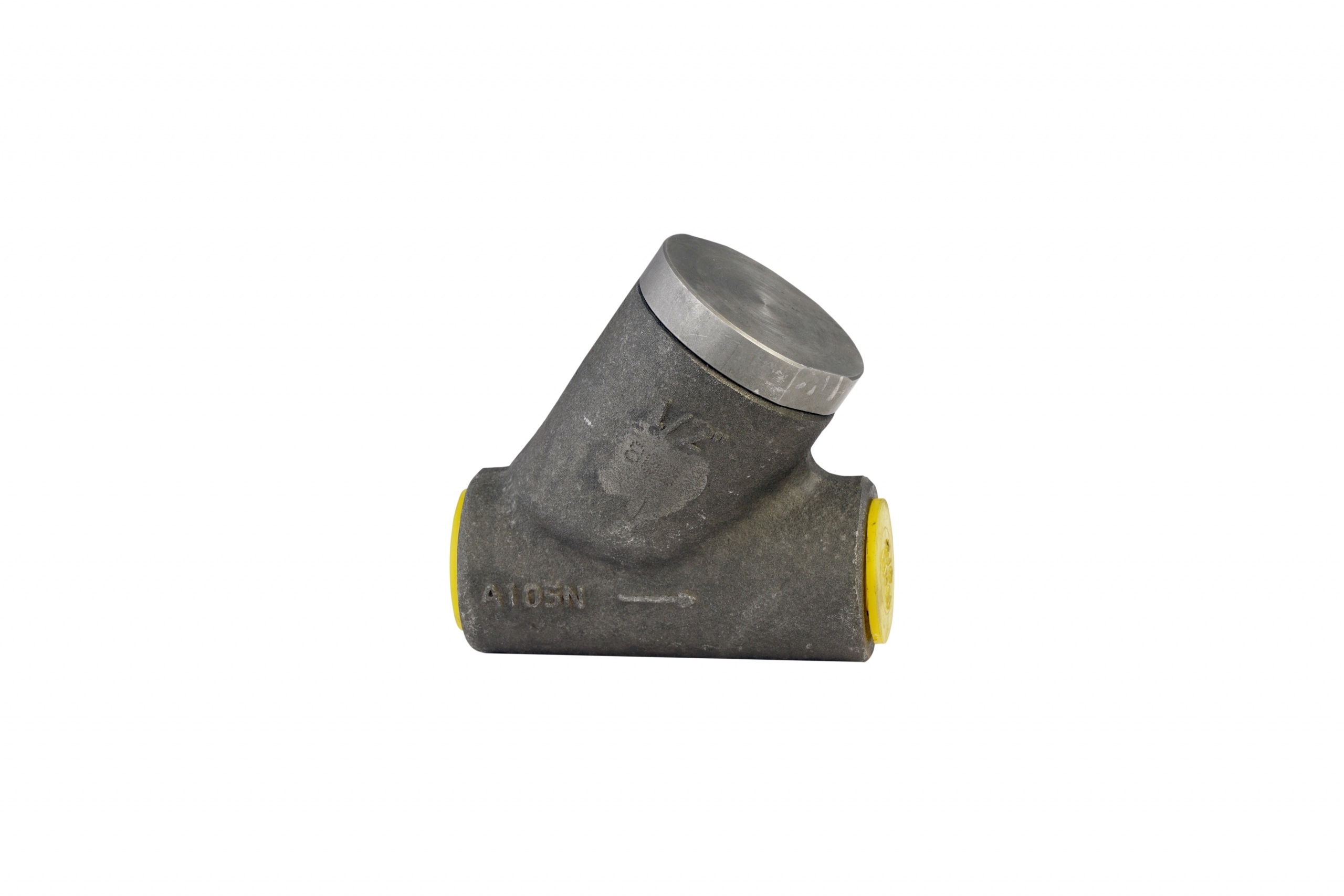

Valve Dimensions (in mm) |
||||
| SIZE | L | øP | C |
øA |
| 15MM | 87 | 9.5 | 9.5 |
21.8 |
| 20MM | 92 | 12.7 | 12.5 |
27.2 |
| 25MM | 106 | 17.5 | 12.5 |
33.9 |
| 40MM | 142 | 25 | 12.5 |
48.8 |
| 50MM | 142 | 29 | 16 |
61.3 |
Technical Specification (Material Data Sheet) |
||||
| No. | DESCRIPTION | A-105N | ||
| 1 | BODY | ASTM A 105N | ||
| 2 | SCREEN | SS304 | ||
| 3 | GASKET | PTFE | ||
| 4 | COVER | ASTM A 105N | ||
Technical Data (Design & Testing Standard) |
|
| DESIGN STANDARD | API 602 |
| TESTING STANDARD | API 598 |
| FACE TO FACE STANDARD | Manufacturing Standard |
| SOCKET WELD STANDARD | ASME B16.11 |
| SCREWED END STANDARD | ASME B1.20.1 |
| CLASS | 800# |
