Swing Check Valve – GE Valve

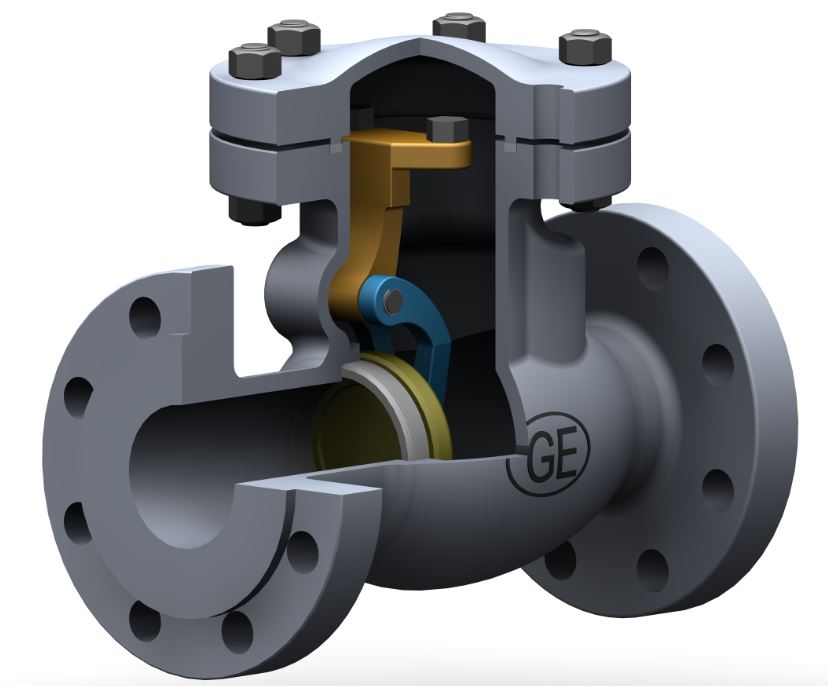

IC Swing Check Valve

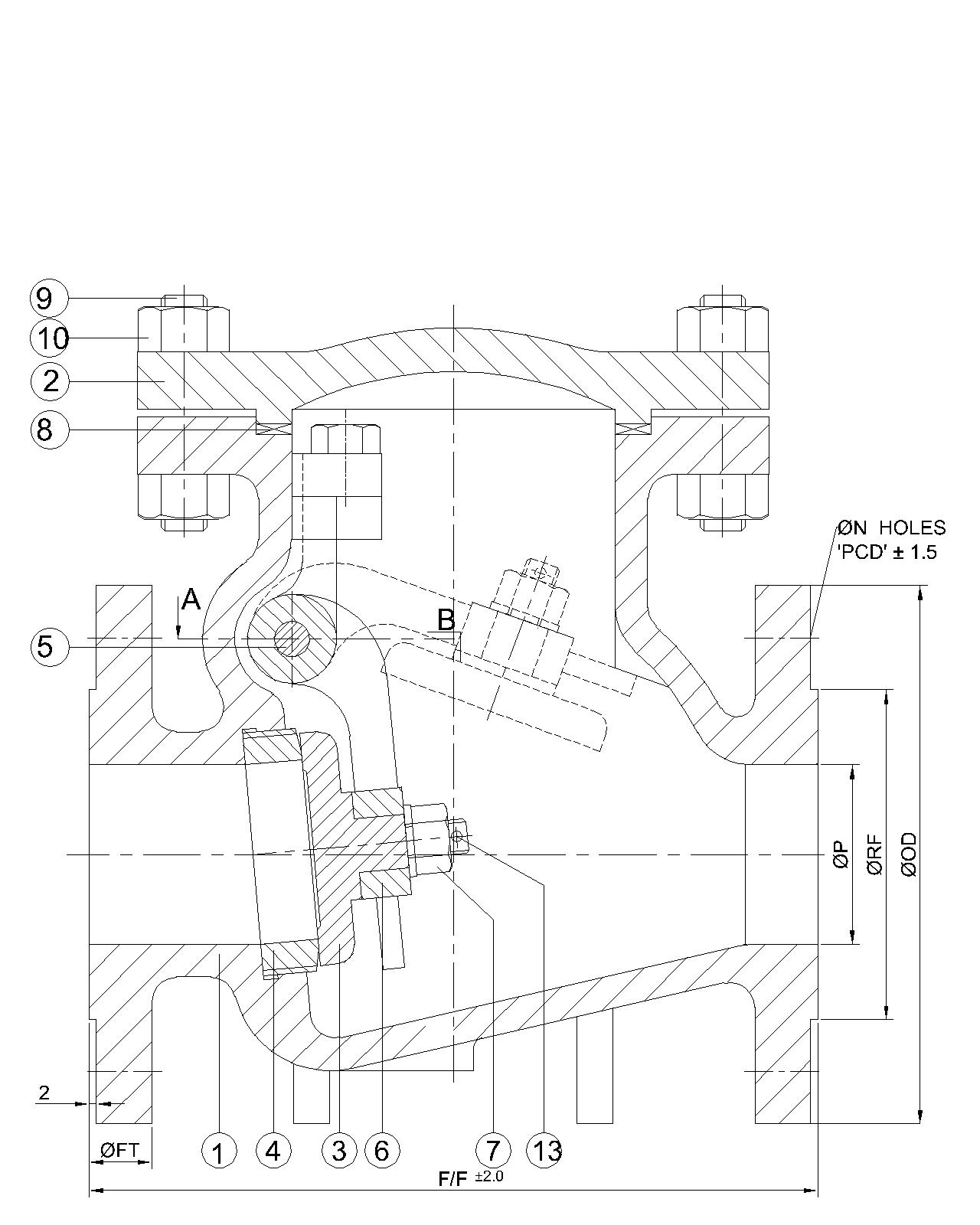

CHECK VALVE 150#								CHECK VALVE 300#						CHECK VALVE 600#
SIZE	F/F	ØP	OD	FT	RF	PCD	N	F/F	OD	FT	RF	PCD	N	F/F	OD	FT	RF	PCD	N
15MM	108	13	89	9.6	34.9	60.39	4	152	95	12.7	34.9	66.5	4	165	95	14.2	34.9	66.5	4
20MM	117	19	99	11.2	42.9	69.9	4	178	117	14.2	42.9	82.6	4	190	117	15.7	42.9	82.6	4
25MM	127	25	108	12.7	50.8	46.4	4	203	124	15.7	50.8	88.9	4	216	124	17.5	50.8	88.9	4
40MM	165	38	127	15.9	73	98.4	4	216	155	19	73	114.3	4	229	155	22.4	73	114.3	4
50MM	203	50	152	17.5	92.1	120.7	4	267	165	20.6	92.1	127	8	292	165	25.4	92.1	127	8
65MM	216	63	178	20.7	104.8	139.7	4	292	190	23.9	104.8	149.4	8	330	190	28.4	104.8	149.4	8
80MM	241	76	190	22.3	127	152.4	4	318	210	26.9	127	168.1	8	356	210	31.8	127	168.1	8
100MM	292	100	229	22.3	157.2	190.5	4	356	254	30.2	157.2	200.2	8	432	273	38.1	157.2	215.9	8
150MM	406	150	279	23.9	215.9	241.3	8	444	318	35.1	215.9	269.7	12	559	356	47.8	215.9	292.1	12
200MM	495	200	343	27	269.9	298.5	8	559	381	39.6	269.9	330.2	12	660	419	55.6	269.9	349.2	12
250MM	622	250	406	28.6	323.8	362	12	622	444	46	323.8	387.4	16	737	508	63.5	323.8	431.8	16
300MM	699	300	483	30.2	381	431.8	12	711	521	49.3	381	450.8	16	838	559	66.5	381	489	20

Technical Specification (Material Data Sheet)
No.	Description	WCB	CF8	CF8M
1	BODY	ASTM A 216 GR. WCB	ASTM A 351 GR. CF8	ASTM A 351 GR. CF8M
2	COVER	ASTM A 216 GR. WCB	ASTM A 351 GR. CF8	ASTM A 351 GR. CF8M
3	DISC	WCB + 13% CR. FACING	ASTM A 351 GR. CF8	ASTM A 351 GR. CF8M
4	SEAT RING	AISI 410	AISI 304	AISI 316
5	HING PIN	AISI 410	AISI 410	AISI 410
6	HING	ASTM A 216 GR. WCB	ASTM A 351 GR. CF8	ASTM A 351 GR. CF8M
7	DISC NUT	AISI 410	AISI 304	AISI 316
8	GASKET	SS304 + SPW GRAPHITE	SS304 + SPW GRAPHITE	SS316 + SPW GRAPHITE
9	STUD	ASTM A 193 GR. B7	ASTM A 193 GR. B8	ASTM A 193 GR. B8M
10	STUD NUT	ASTM A 194 GR. 2H	ASTM A 194 GR. 8	ASTM A 194 GR. 8M

Technical Data (Design & Testing Standard)
DESIGN STANDARD	BS 1868
FACE TO FACE STANDARD	ASME B16.10
FLANGED END STANDARD	ASME B16.5
TESTING STANDARD	API 598, ISO 5208
CLASS	150#, 300#, 600#
MATERIAL	WCB, WC6, LCB, CF8, CF3, CF8, CF3M, Etc.
END CONNECTION	FLANGED END / BUTT WELD
OPERATION	SELF
