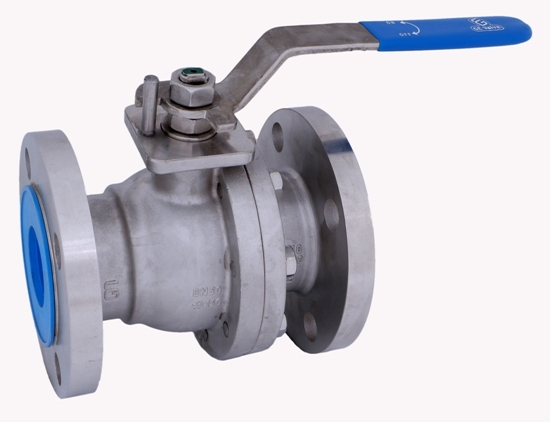

TWO PIECE FLOATING FIRE SAFE BALL VALVES
Reduce Bore Class #150 Valve Dimensions (in mm)
|
Size |
L |
øNB |
øD |
B |
øG |
P |
øJ |
N |
H |
RFH |
M-PCD |
15MM |
108 |
8 |
90 |
10.1 |
34.9 |
60.3 |
15.9 |
4 |
125 |
1.7 |
35 |
20MM |
117 |
15 |
100 |
10.9 |
42.9 |
69.8 |
15.9 |
4 |
125 |
1.7 |
35 |
25MM |
127 |
20 |
110 |
11.6 |
50.8 |
79.8 |
15.9 |
4 |
145 |
1.7 |
50 |
40MM |
165 |
32 |
125 |
14.7 |
73 |
98.4 |
15.9 |
4 |
195 |
1.7 |
55 |
50MM |
178 |
40 |
150 |
16.3 |
92.1 |
120.7 |
19.1 |
4 |
195 |
1.7 |
55 |
65MM |
190 |
50 |
180 |
18 |
104.8 |
139.7 |
19.1 |
4 |
225 |
1.7 |
70 |
80MM |
203 |
50 |
190.5 |
19.5 |
127 |
152.4 |
19.1 |
4 |
245 |
1.7 |
70 |
100MM |
229 |
80 |
230 |
23.9 |
157.2 |
190.5 |
19.1 |
8 |
420 |
1.7 |
70 |
150MM |
394 |
100 |
280 |
25.4 |
215.9 |
241.3 |
22.2 |
8 |
450 |
1.7 |
70 |
200MM |
457 |
150 |
345 |
28.4 |
269.9 |
298.5 |
22.2 |
8 |
450 |
1.7 |
75 |
Full Bore Valve, Class #150 Dimensions (in mm)
|
Size |
L |
øNB |
øD |
B |
øG |
P |
øJ |
N |
H |
RFH |
M-PCD |
15MM |
108 |
15 |
90 |
10.1 |
34.9 |
60.3 |
15.9 |
4 |
125 |
1.7 |
35 |
20MM |
117 |
20 |
100 |
10.9 |
42.9 |
69.8 |
15.9 |
4 |
125 |
1.7 |
35 |
25MM |
127 |
25 |
110 |
11.6 |
50.8 |
79.8 |
15.9 |
4 |
145 |
1.7 |
50 |
40MM |
165 |
40 |
125 |
14.7 |
73 |
98.4 |
15.9 |
4 |
195 |
1.7 |
55 |
50MM |
178 |
50 |
150 |
16.3 |
92.1 |
120.7 |
19.1 |
4 |
195 |
1.7 |
55 |
65MM |
190 |
65 |
180 |
18 |
104.8 |
139.7 |
19.1 |
4 |
225 |
1.7 |
70 |
80MM |
203 |
80 |
190.5 |
19.5 |
127 |
152.4 |
19.1 |
4 |
245 |
1.7 |
70 |
100MM |
229 |
100 |
230 |
23.9 |
157.2 |
190.5 |
19.1 |
8 |
420 |
1.7 |
70 |
150MM |
394 |
150 |
280 |
25.4 |
215.9 |
241.3 |
22.2 |
8 |
450 |
1.7 |
70 |
200MM |
457 |
200 |
345 |
28.4 |
269.9 |
298.5 |
22.2 |
8 |
450 |
1.7 |
75 |
Full Bore Valve Class #300 Dimensions (in mm)
|
Size |
L |
ØNB |
øD |
B |
øG |
P |
øJ |
N |
H |
RFH |
M-PCD |
15MM |
140 |
15 |
95 |
14.3 |
34.9 |
66.5 |
15.9 |
4 |
120 |
1.7 |
35 |
20MM |
152 |
20 |
115 |
15.9 |
42.9 |
82.6 |
19 |
4 |
120 |
1.7 |
35 |
25MM |
165 |
25 |
125 |
17.5 |
50.8 |
88.9 |
19 |
4 |
150 |
1.7 |
56 |
40MM |
191 |
40 |
155 |
20.7 |
73 |
114.3 |
22.2 |
4 |
225 |
1.7 |
65 |
50MM |
216 |
50 |
165 |
22.3 |
92.1 |
127 |
19 |
8 |
225 |
1.7 |
70 |
65MM |
241 |
65 |
190 |
25.4 |
104.8 |
149.2 |
22.2 |
8 |
325 |
1.7 |
70 |
80MM |
282 |
80 |
210 |
28.6 |
127 |
168.3 |
22.2 |
8 |
325 |
1.7 |
70 |
100MM |
300 |
100 |
255 |
31.8 |
157.2 |
200 |
22.2 |
8 |
360 |
1.7 |
84 |
150MM |
405 |
150 |
320 |
36.6 |
215.9 |
269.9 |
22.2 |
12 |
395 |
1.7 |
84 |
Technical Specification (Material Data Sheet)
|
No.
|
Description |
WCB |
CF8 |
CF8M
|
1 |
BODY |
ASTM A 216 GR. WCB |
ASTM A 351 GR. CF8 |
ASTM A 351 GR. CF8M |
2 |
ENE PIECE |
ASTM A 216 GR. WCB |
ASTM A 351 GR. CF8 |
ASTM A 351 GR. CF8M |
|
3 |
BALL |
ASTM A 351 GR. CF8 |
ASTM A 351 GR. CF8 |
ASTM A 351 GR. CF8M |
|
4 |
STEM |
ASTM A479 TYPE SS-304 |
ASTM A479 TYPE SS-304 |
ASTM A479 TYPE SS-316 |
5 |
SEAT RING |
PTFE |
PTFE |
PTFE |
6 |
STEM SEAL |
EXPANDED GRAPHITE |
EXPANDED GRAPHITE |
EXPANDED GRAPHITE |
7 |
GLAND PACKING |
EXPANDED GRAPHITE |
EXPANDED GRAPHITE |
EXPANDED GRAPHITE |
8 |
GLAND BUSH |
ASTM A479 TYPE SS-304 |
ASTM A479 TYPE SS-304 |
ASTM A479 TYPE SS-304 |
9 |
BODY GASKET |
SPW SS304 + GRAFOIL |
SPW SS304 + GRAFOIL |
SPW SS316 + GRAFOIL |
10 |
STUDS & NUTS |
A193 GR. B7 / A194 GR. 2H |
A193 GR. B8 / A194 GR. 8 |
A193 GR. B8M / A194 GR. 8M |
11 |
GLAND NUT & LOCK NUT |
ASTM A194 GR. 2H |
ASTM A 194 GR. 8 |
ASTM A 194 GR. 8 |
12 |
LEVER |
CS WITH PVC SLEEVE |
STAINLESS STEEL |
STAINLESS STEEL |
13 |
LOCK WASHER |
CS WITH ZINK PLATED |
CS WITH ZINK PLATED |
CS WITH ZINK PLATED |
14 |
BELLEVILLE WASHER |
SPRING STEEL |
SPRING STEEL |
SPRING STEEL |
15 |
STOPPER |
CARBON STEEL |
SS304 |
SS304 |
16 |
STEM O RING |
NEOPRENE RUBBER |
NEOPRENE RUBBER |
NEOPRENE RUBBER |
|
Technical Data (Design & Testing Standard)
|
Design Standard: |
ISO 17292 / BS 5351 / ASME B16.34 / API 6D |
Testing Standard: |
BS 6755 Part – I / API 598 / API 607 |
Face To Face Standard: |
ASME B16.10 |
Flange End Standard: |
ASME B16.5 |
Valve Operation: |
Lever, Pneumatic, Electrical, Gear |
Special Features |
ISO PAD,Stem Extension, Locking Arrangement, PEEK Seated, Fire Safe, etc. |
