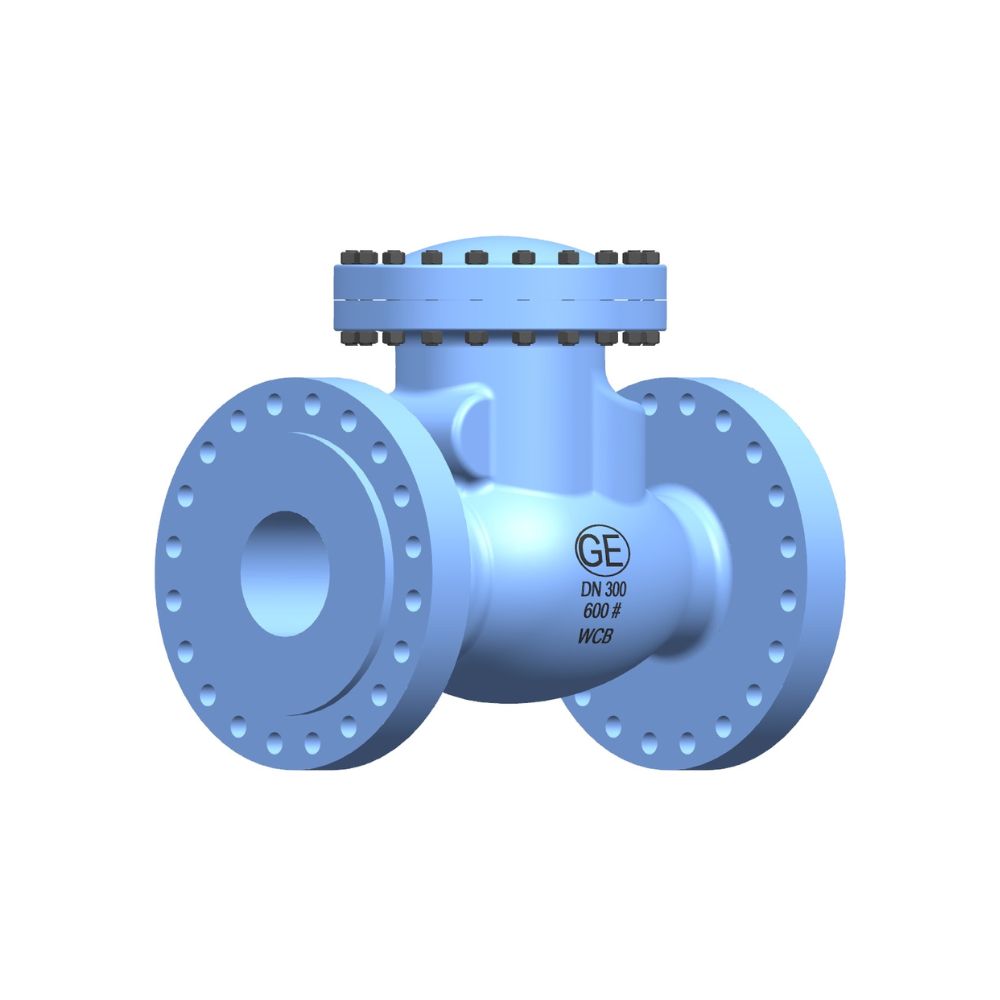

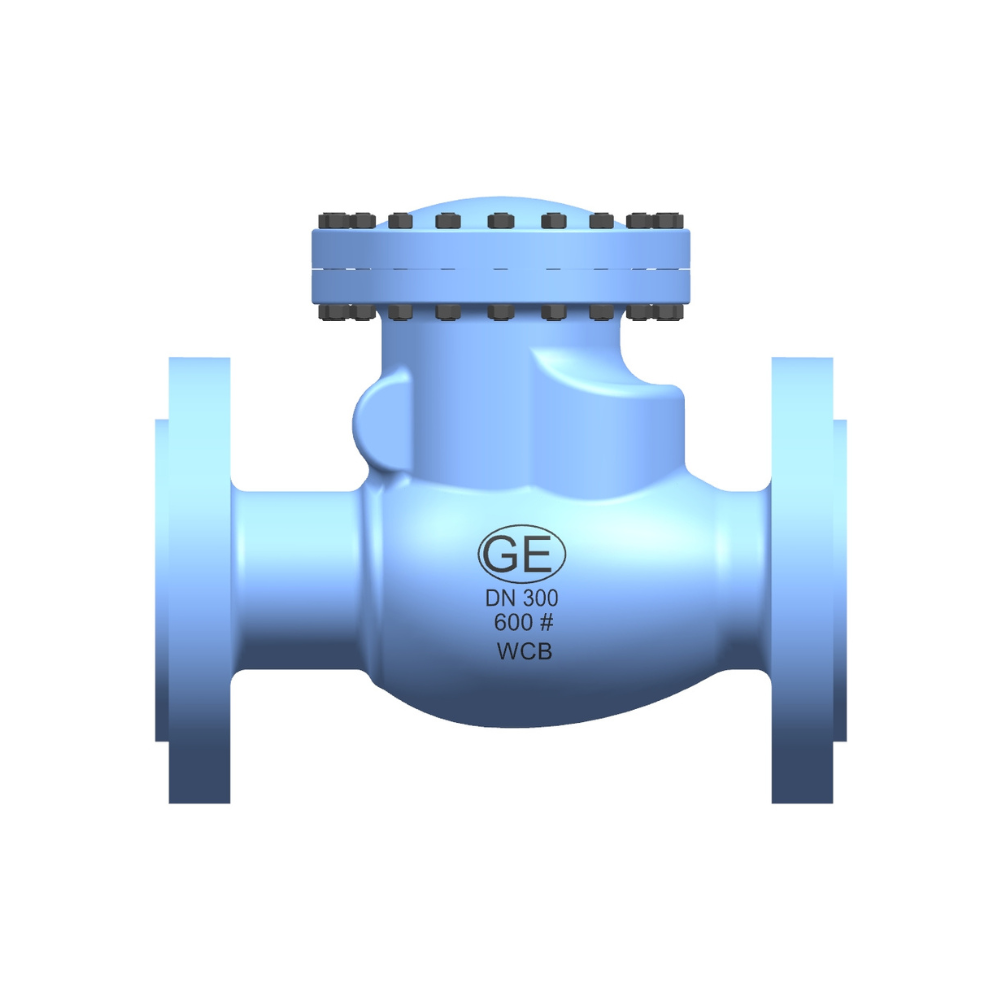

Automatic valve preventing backflow with swinging disc design. Low maintenance and reliable sealing. Ensures smooth, one-directional flow. Strong and long-lasting structure.
| CHECK VALVE 150# | CHECK VALVE 300# | CHECK VALVE 600# | ||||||||||||||||
| SIZE | F/F | OD | FT | RF | PCD | N | F/F | OD | FT | RF | PCD | N | F/F | OD | FT | RF | PCD | N |
| 15MM | 108 | 89 | 9.6 | 34.9 | 60.39 | 4 | 152 | 95 | 12.7 | 34.9 | 66.5 | 4 | 165 | 95 | 14.2 | 34.9 | 66.5 | 4 |
| 20MM | 117 | 99 | 11.2 | 42.9 | 69.9 | 4 | 178 | 117 | 14.2 | 42.9 | 82.6 | 4 | 190 | 117 | 15.7 | 42.9 | 82.6 | 4 |
| 25MM | 127 | 108 | 12.7 | 50.8 | 46.4 | 4 | 203 | 124 | 15.7 | 50.8 | 88.9 | 4 | 216 | 124 | 17.5 | 50.8 | 88.9 | 4 |
| 40MM | 165 | 127 | 15.9 | 73 | 98.4 | 4 | 216 | 155 | 19 | 73 | 114.3 | 4 | 229 | 155 | 22.4 | 73 | 114.3 | 4 |
| 50MM | 203 | 152 | 17.5 | 92.1 | 120.7 | 4 | 267 | 165 | 20.6 | 92.1 | 127 | 8 | 292 | 165 | 25.4 | 92.1 | 127 | 8 |
| 65MM | 216 | 178 | 20.7 | 104.8 | 139.7 | 4 | 292 | 190 | 23.9 | 104.8 | 149.4 | 8 | 330 | 190 | 28.4 | 104.8 | 149.4 | 8 |
| 80MM | 241 | 190 | 22.3 | 127 | 152.4 | 4 | 318 | 210 | 26.9 | 127 | 168.1 | 8 | 356 | 210 | 31.8 | 127 | 168.1 | 8 |
| 100MM | 292 | 229 | 22.3 | 157.2 | 190.5 | 4 | 356 | 254 | 30.2 | 157.2 | 200.2 | 8 | 432 | 273 | 38.1 | 157.2 | 215.9 | 8 |
| 150MM | 406 | 279 | 23.9 | 215.9 | 241.3 | 8 | 444 | 318 | 35.1 | 215.9 | 269.7 | 12 | 559 | 356 | 47.8 | 215.9 | 292.1 | 12 |
| 200MM | 495 | 343 | 27 | 269.9 | 298.5 | 8 | 559 | 381 | 39.6 | 269.9 | 330.2 | 12 | 660 | 419 | 55.6 | 269.9 | 349.2 | 12 |
| 250MM | 622 | 406 | 28.6 | 323.8 | 362 | 12 | 622 | 444 | 46 | 323.8 | 387.4 | 16 | 737 | 508 | 63.5 | 323.8 | 431.8 | 16 |
| 300MM | 699 | 483 | 30.2 | 381 | 431.8 | 12 | 711 | 521 | 49.3 | 381 | 450.8 | 16 | 838 | 559 | 66.5 | 381 | 489 | 20 |
| CHECK VALVE 900# | CHECK VALVE 1500# | |||||||||||
| F/F | OD | FT | RF | PCD | N | F/F | OD | FT | RF | PCD | N | |
| 50MM | 368 | 215 | 38.1 | 6.4 | 165.1 | 8 | 368 | 216 | 38.1 | 6.4 | 165.1 | 8 |
| 65MM | 419 | 245 | 41.3 | 6.4 | 190.5 | 8 | 419 | 244 | 41.1 | 6.4 | 190.5 | 8 |
| 80MM | 381 | 241 | 38.1 | 6.4 | 190.5 | 8 | 470 | 267 | 47.8 | 6.4 | 203.2 | 8 |
| 100MM | 457 | 292 | 44.4 | 6.4 | 235 | 8 | 546 | 311 | 53.8 | 6.4 | 241.3 | 8 |
| 150MM | 610 | 381 | 55.6 | 6.4 | 317.5 | 12 | 705 | 394 | 82.6 | 6.4 | 317.5 | 12 |
| 200MM | 737 | 470 | 63.5 | 6.4 | 393.7 | 12 | 832 | 483 | 91.9 | 6.4 | 393.7 | 12 |
| 250MM | 838 | 546 | 69.8 | 6.4 | 469.9 | 16 | 991 | 584 | 108 | 6.4 | 482.6 | 12 |
| 300MM | 965 | 610 | 79.4 | 6.4 | 533.4 | 20 | 1130 | 673 | 124 | 6.4 | 571.5 | 16 |

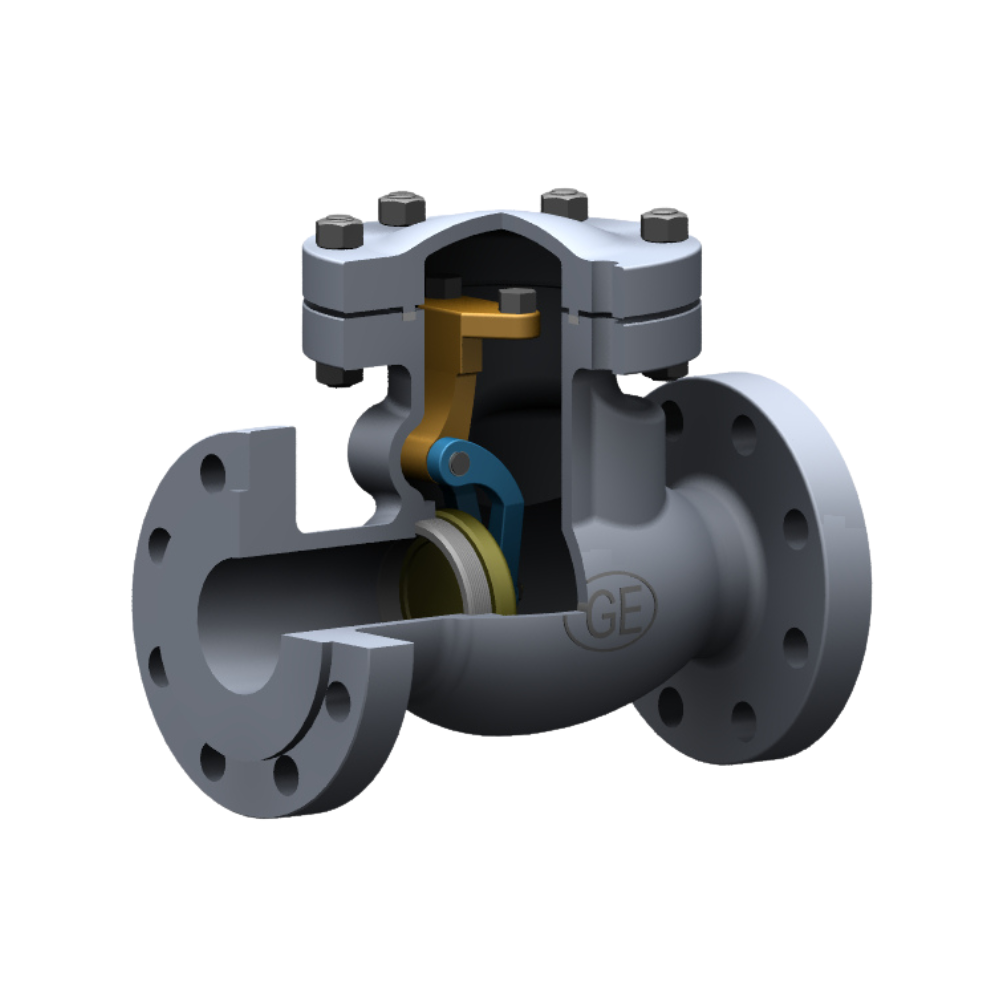

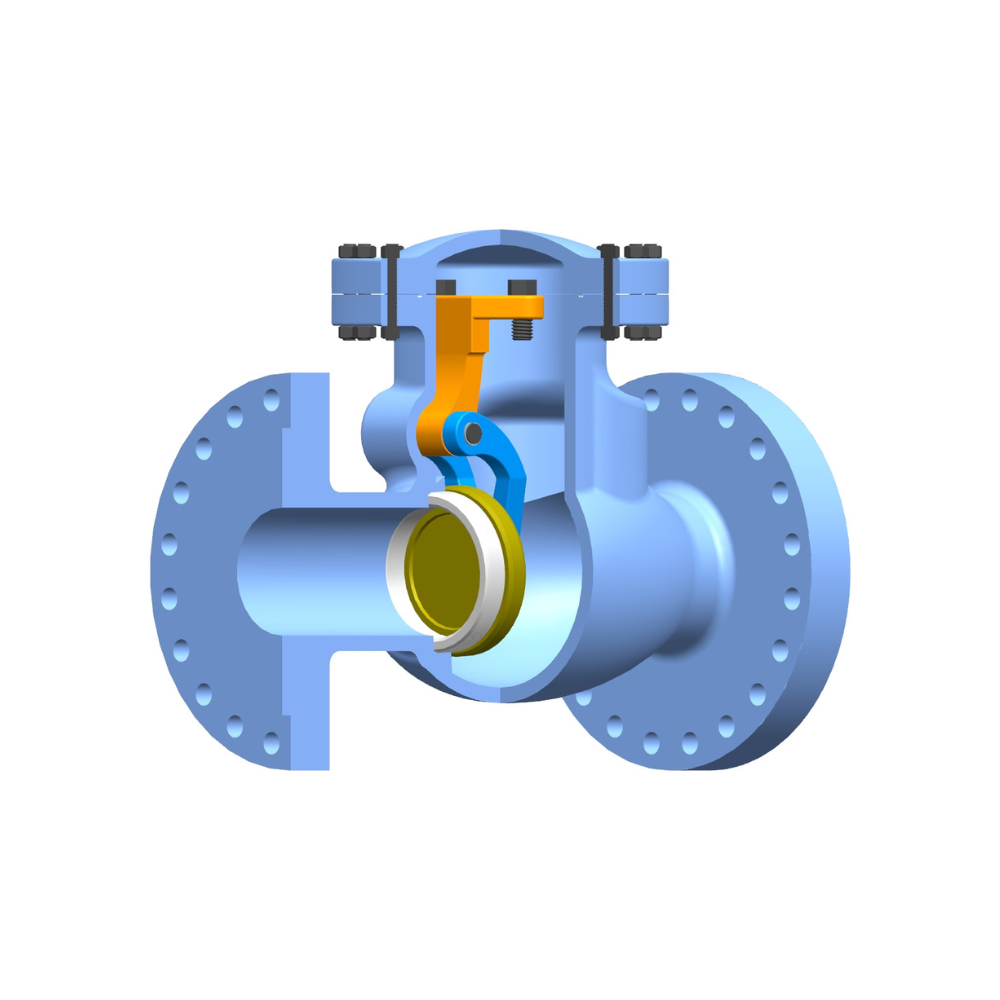

The Swing Check Valve is engineered to prevent reverse flow in pipelines, safeguarding equipment and ensuring process reliability. Its simple swinging disc mechanism allows free flow in one direction while automatically closing to block backflow.
This valve’s rugged build ensures minimal maintenance and excellent resistance to wear. It operates quietly and efficiently, making it a preferred choice for industries seeking safe and dependable non-return solutions.
