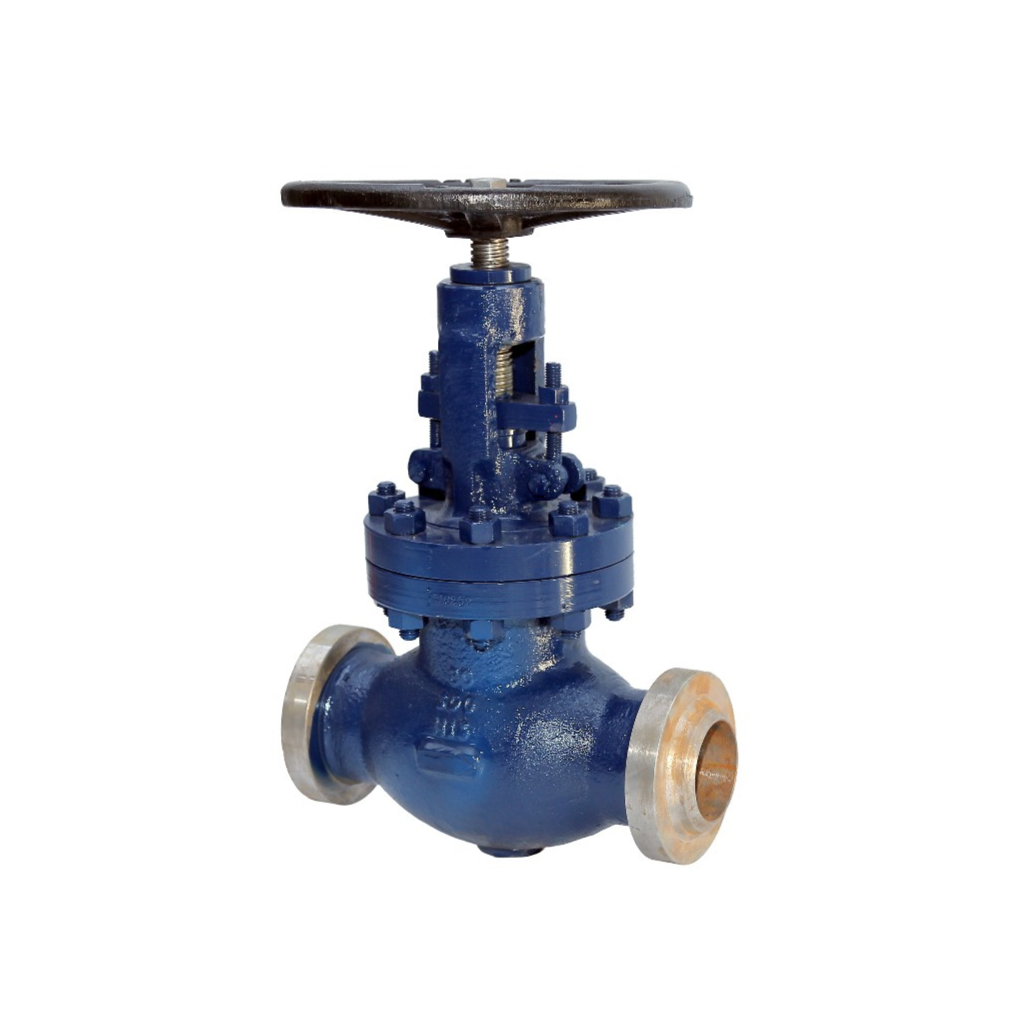

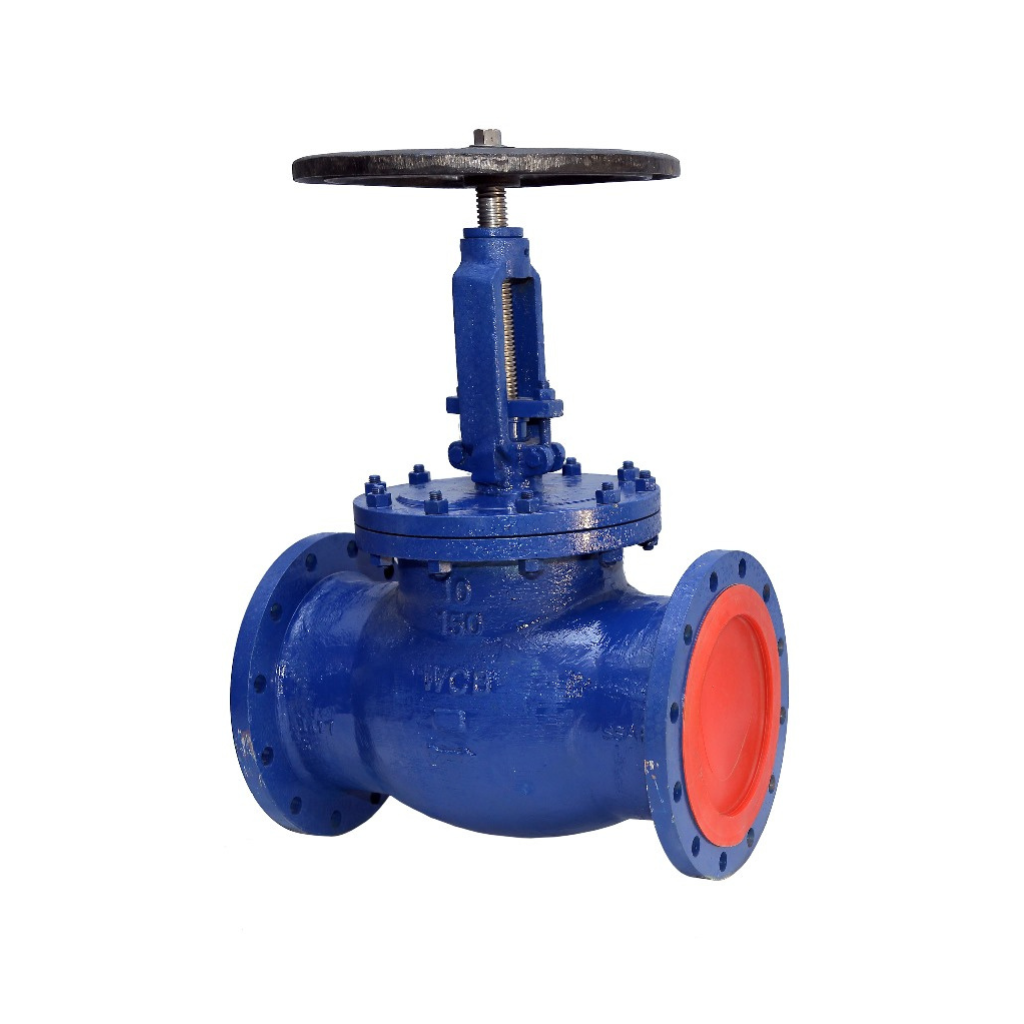

Precision-built valve designed for accurate flow control. Easy to install and service with flanged connections. Provides dependable performance under pressure. Strong and long-lasting construction.
| GLOBE VALVE 150# | GLOBE VALVE 300# | GLOBE VALVE 600# | ||||||||||||||||
| SIZE | F/F | OD | FT | RF | PCD | N | F/F | OD | FT | RF | PCD | N | F/F | OD | FT | RF | PCD | N |
| 15MM | 108 | 89 | 9.6 | 34.9 | 60.39 | 4 | 152 | 95 | 12.7 | 34.9 | 66.5 | 4 | 165 | 95 | 14.2 | 34.9 | 66.5 | 4 |
| 20MM | 117 | 99 | 11.2 | 42.9 | 69.9 | 4 | 178 | 117 | 14.2 | 42.9 | 82.6 | 4 | 190 | 117 | 15.7 | 42.9 | 82.6 | 4 |
| 25MM | 127 | 108 | 12.7 | 50.8 | 46.4 | 4 | 203 | 124 | 15.7 | 50.8 | 88.9 | 4 | 216 | 124 | 17.5 | 50.8 | 88.9 | 4 |
| 40MM | 165 | 127 | 15.9 | 73 | 98.4 | 4 | 216 | 155 | 19 | 73 | 114.3 | 4 | 229 | 155 | 22.4 | 73 | 114.3 | 4 |
| 50MM | 203 | 152 | 17.5 | 92.1 | 120.7 | 4 | 267 | 165 | 20.6 | 92.1 | 127 | 8 | 292 | 165 | 25.4 | 92.1 | 127 | 8 |
| 65MM | 216 | 178 | 20.7 | 104.8 | 139.7 | 4 | 292 | 190 | 23.9 | 104.8 | 149.4 | 8 | 330 | 190 | 28.4 | 104.8 | 149.4 | 8 |
| 80MM | 241 | 190 | 22.3 | 127 | 152.4 | 4 | 318 | 210 | 26.9 | 127 | 168.1 | 8 | 356 | 210 | 31.8 | 127 | 168.1 | 8 |
| 100MM | 292 | 229 | 22.3 | 157.2 | 190.5 | 4 | 356 | 254 | 30.2 | 157.2 | 200.2 | 8 | 432 | 273 | 38.1 | 157.2 | 215.9 | 8 |
| 150MM | 406 | 279 | 23.9 | 215.9 | 241.3 | 8 | 444 | 318 | 35.1 | 215.9 | 269.7 | 12 | 559 | 356 | 47.8 | 215.9 | 292.1 | 12 |
| 200MM | 495 | 343 | 27 | 269.9 | 298.5 | 8 | 559 | 381 | 39.6 | 269.9 | 330.2 | 12 | 660 | 419 | 55.6 | 269.9 | 349.2 | 12 |
| 250MM | 622 | 406 | 28.6 | 323.8 | 362 | 12 | 622 | 444 | 46 | 323.8 | 387.4 | 16 | 737 | 508 | 63.5 | 323.8 | 431.8 | 16 |
| 300MM | 699 | 483 | 30.2 | 381 | 431.8 | 12 | 711 | 521 | 49.3 | 381 | 450.8 | 16 | 838 | 559 | 66.5 | 381 | 489 | 20 |
| GLOBE VALVE 900# | GLOBE VALVE 1500# | |||||||||||
| F/F | OD | FT | RF | PCD | N | F/F | OD | FT | RF | PCD | N | |
| 50MM | 368 | 215 | 38.1 | 6.4 | 165.1 | 8 | 368 | 216 | 38.1 | 6.4 | 165.1 | 8 |
| 65MM | 419 | 245 | 41.3 | 6.4 | 190.5 | 8 | 419 | 244 | 41.1 | 6.4 | 190.5 | 8 |
| 80MM | 381 | 241 | 38.1 | 6.4 | 190.5 | 8 | 470 | 267 | 47.8 | 6.4 | 203.2 | 8 |
| 100MM | 457 | 292 | 44.4 | 6.4 | 235 | 8 | 546 | 311 | 53.8 | 6.4 | 241.3 | 8 |
| 150MM | 610 | 381 | 55.6 | 6.4 | 317.5 | 12 | 705 | 394 | 82.6 | 6.4 | 317.5 | 12 |
| 200MM | 737 | 470 | 63.5 | 6.4 | 393.7 | 12 | 832 | 483 | 91.9 | 6.4 | 393.7 | 12 |
| 250MM | 838 | 546 | 69.8 | 6.4 | 469.9 | 16 | 991 | 584 | 108 | 6.4 | 482.6 | 12 |
| 300MM | 965 | 610 | 79.4 | 6.4 | 533.4 | 20 | 1130 | 673 | 124 | 6.4 | 571.5 | 16 |
This Flanged Valve is designed to handle applications where flow regulation and durability are essential. Its flanged end design ensures a tight seal and simplifies installation and maintenance. The valve structure is engineered to provide smooth flow with minimal resistance.
Made from premium materials, it guarantees extended operational life and reduced downtime. Its ability to perform reliably under demanding industrial conditions makes it a trusted solution for industries looking for both safety and efficiency.
Our globe valves offer precise flow control, reliable shut-off, and durable performance, making them ideal for demanding throttling and regulation applications across various industries.
Crafted from premium-grade materials, our valves are engineered for durability, high performance, and consistent operation in the most demanding conditions.
Our products strictly comply with international quality and safety standards, including ISO, PED, SIL, and UKCA, ensuring seamless performance across global markets.
Our workforce is a blend of skilled engineers, QC experts, and R&D professionals who bring innovation and technical depth to every product we build.
From Ball Valves to Butterfly Valves, we offer a complete portfolio of industrial valves in a variety of sizes, pressure classes, and materials — with custom configurations available.
We have more than 2 decades of expeience in precision engineering and flow control.
