Butt Weld Valve

0-slider
1-slider
2-slider
3-slider
4-slider
5-slider
6-slider
7-slider
8-slider
9-slider
10-slider
0-slider
1-slider
2-slider
3-slider
4-slider
5-slider
6-slider
7-slider
8-slider
9-slider
10-slider

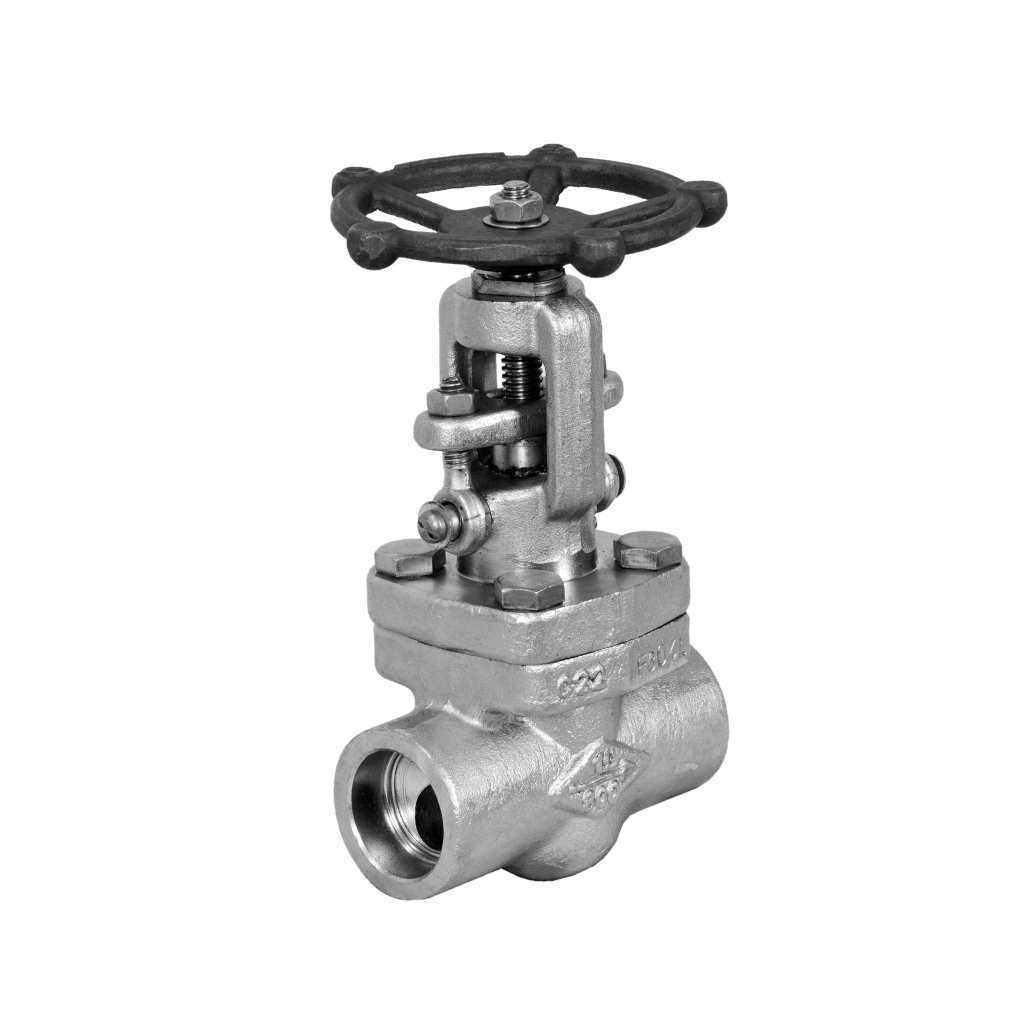

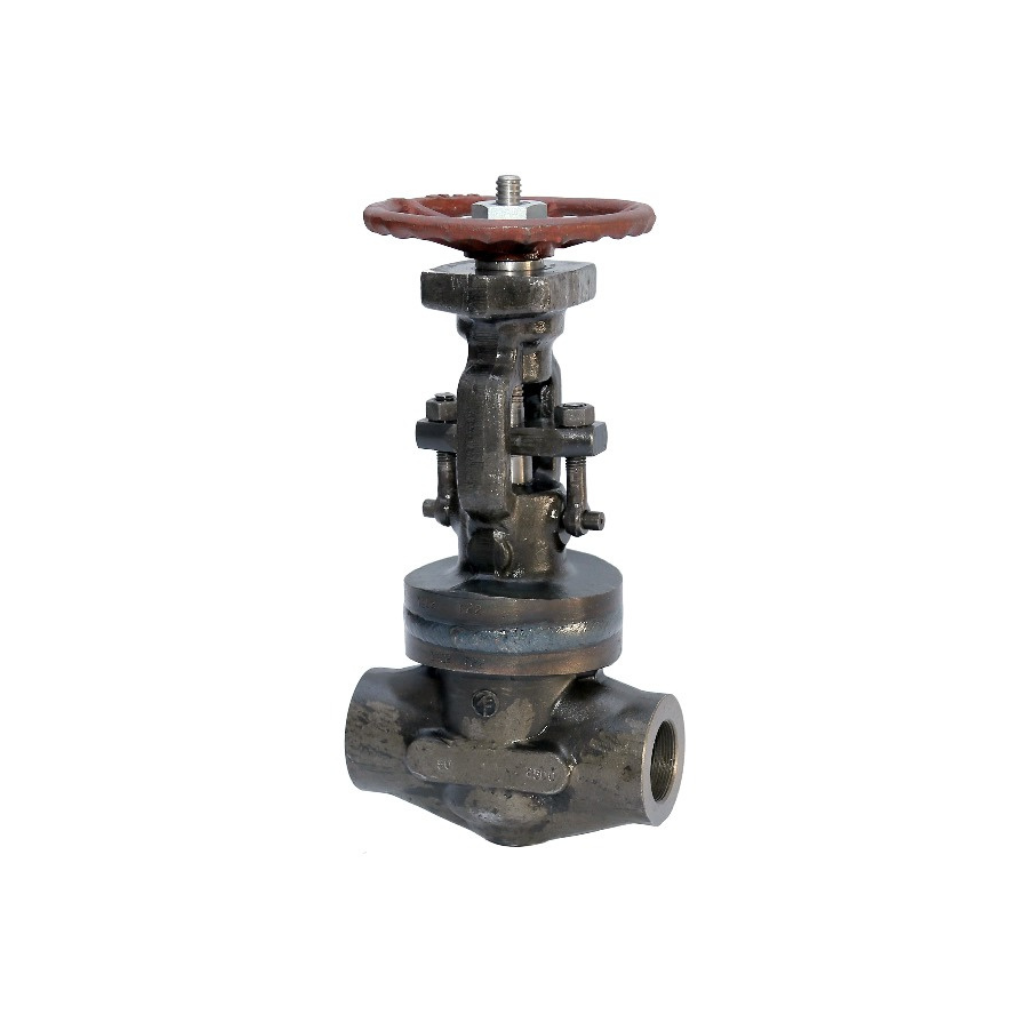

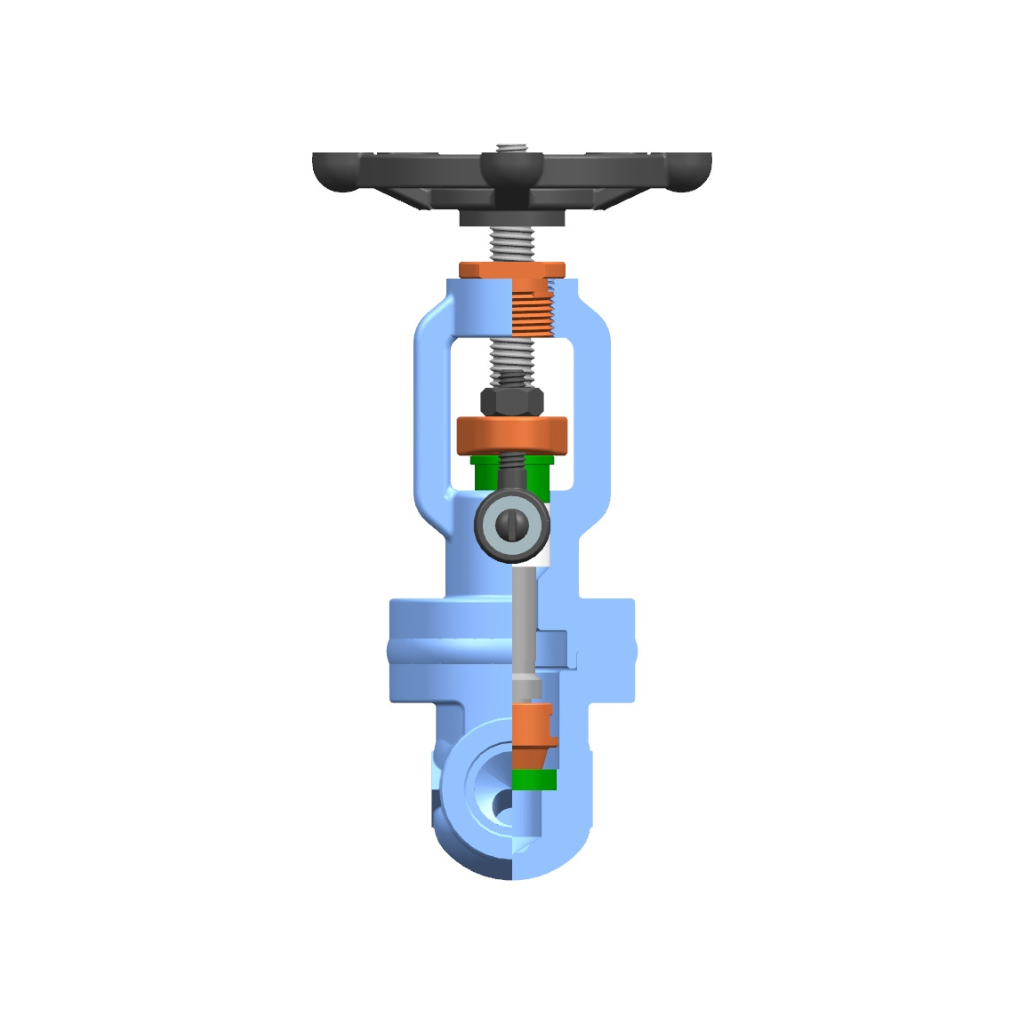

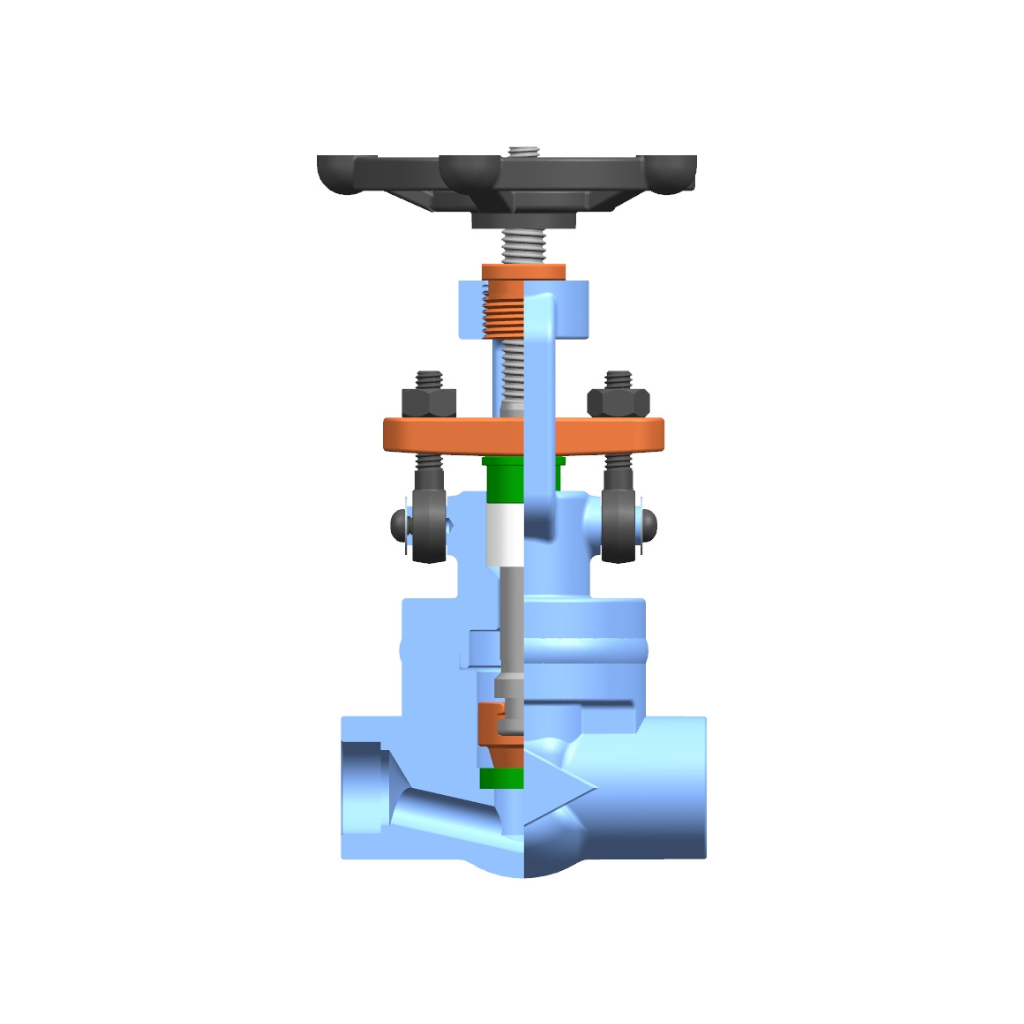

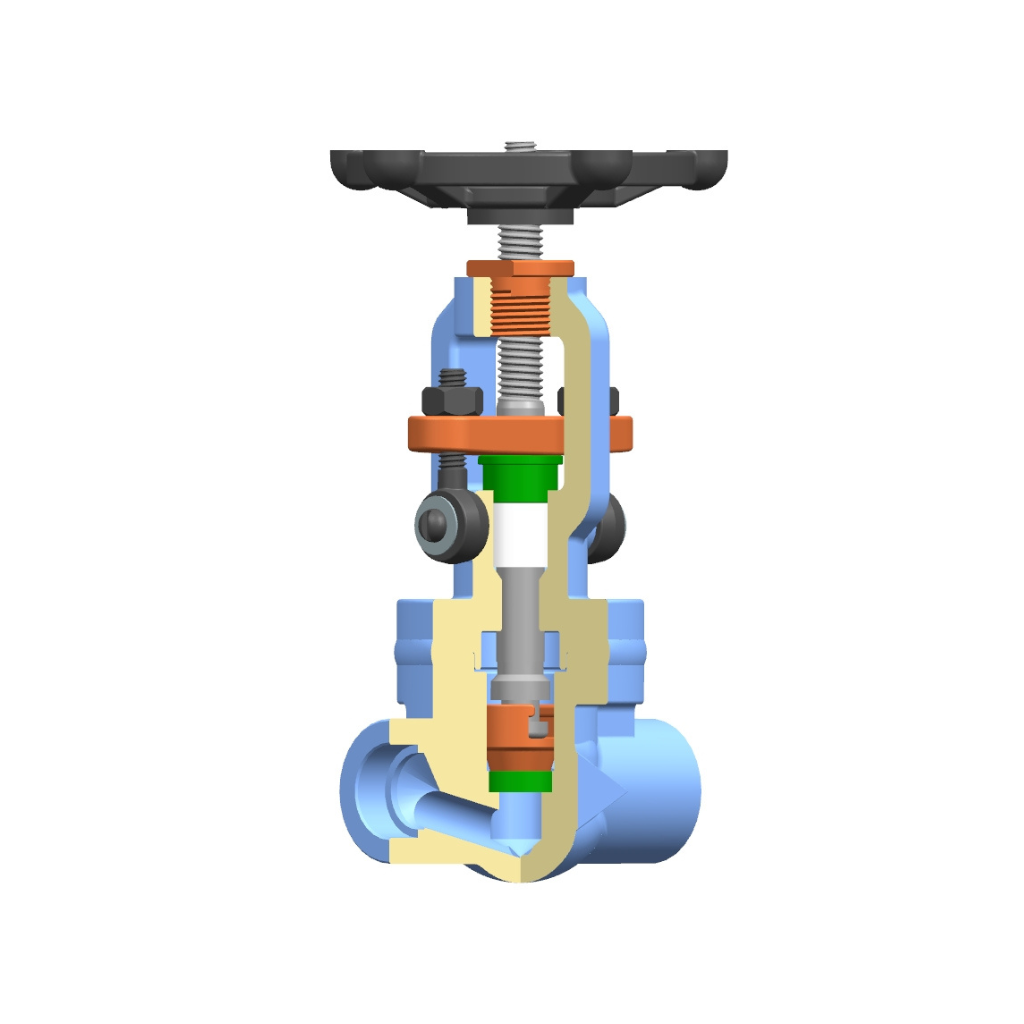

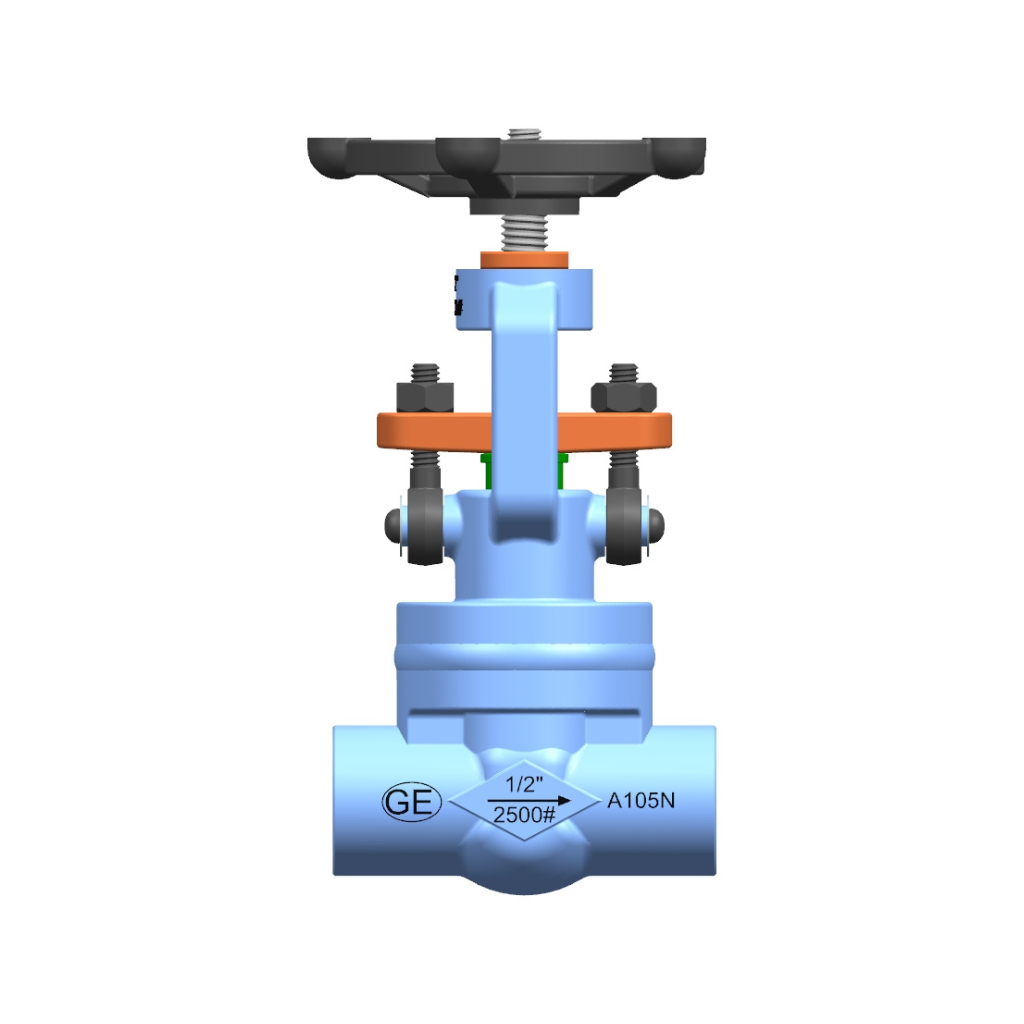

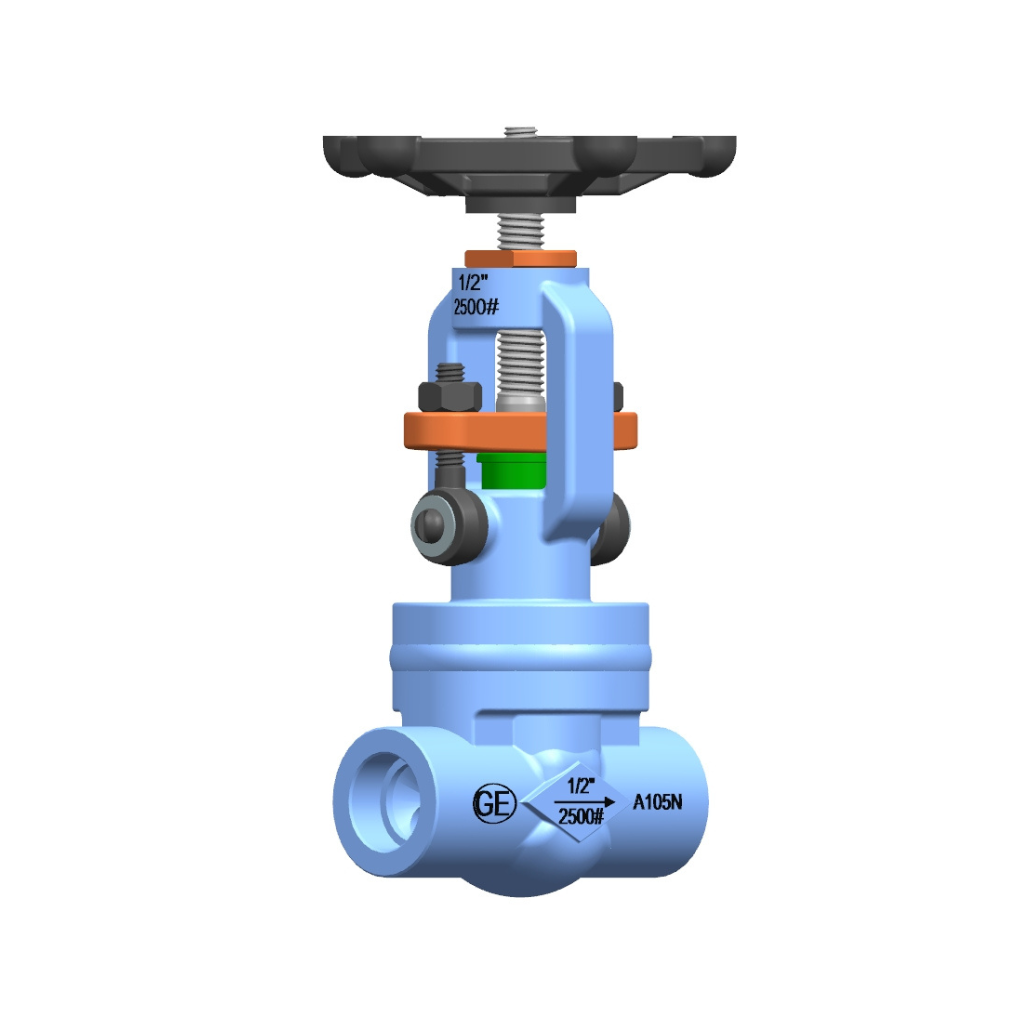

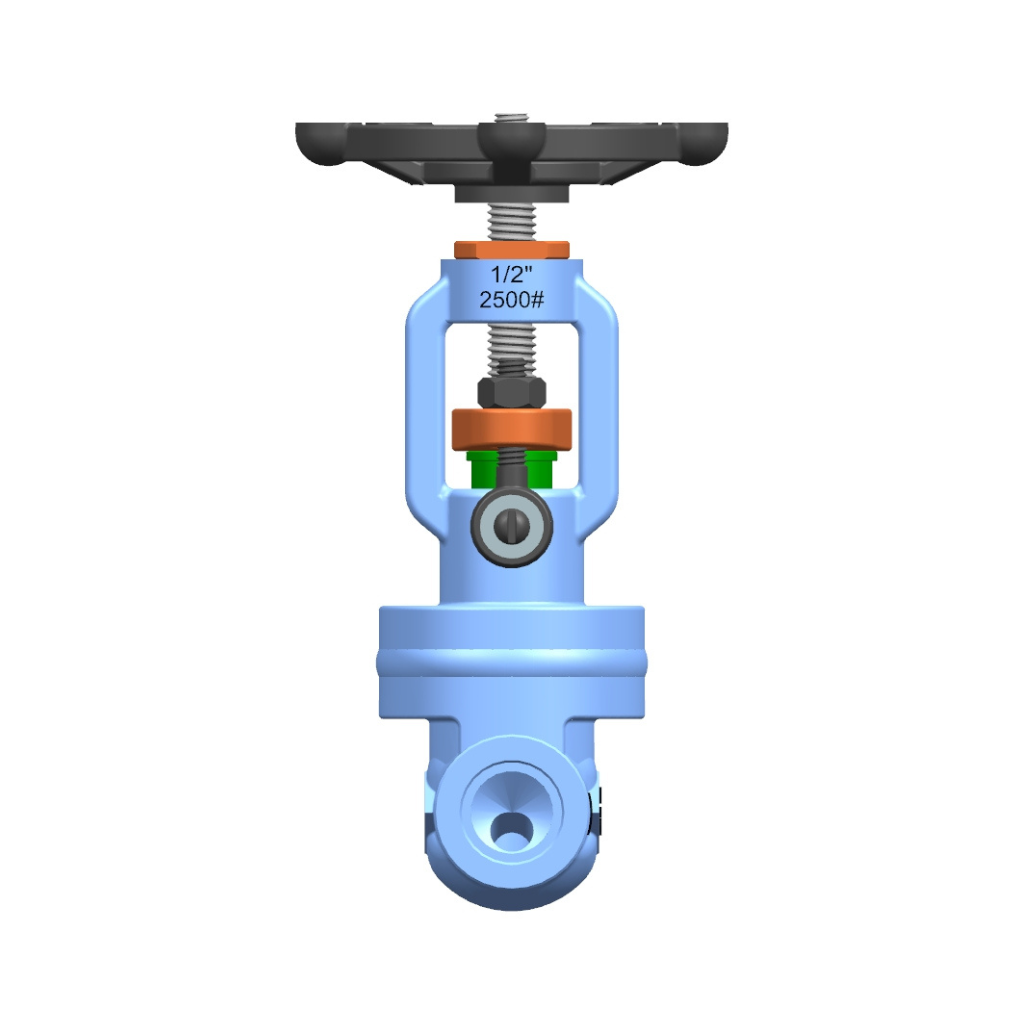

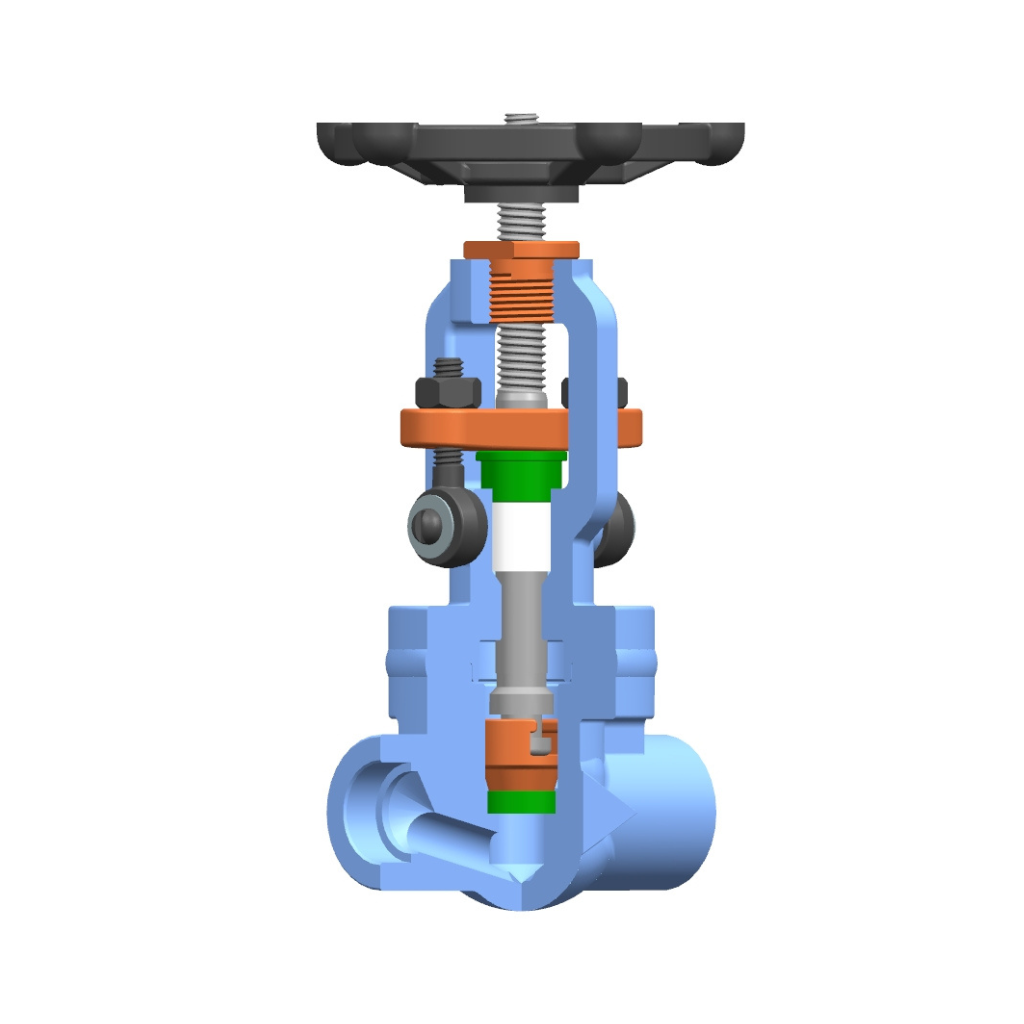

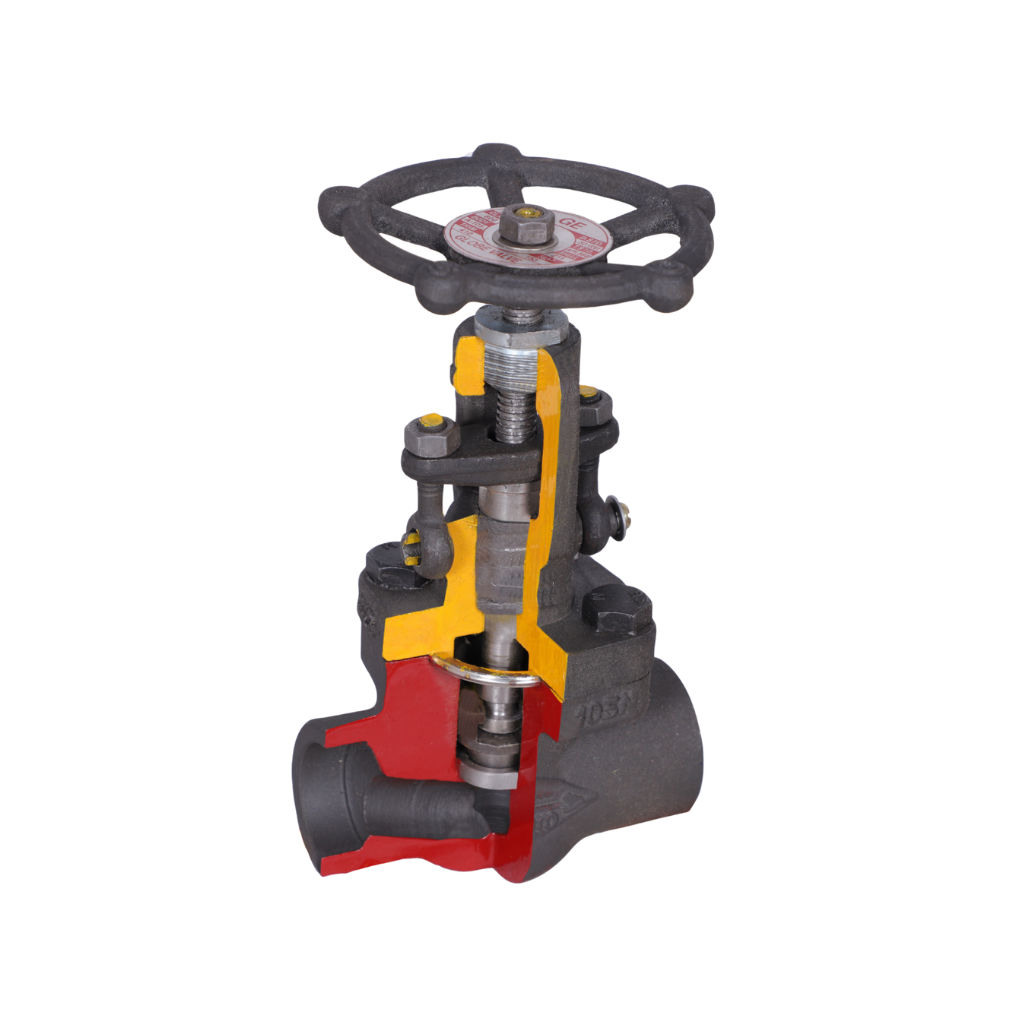

Butt Weld Valve

Durable valve built for secure welded connections. Prevents leaks and offers long-term performance. Withstands high temperatures and pressures. Trusted for industrial reliability.

The Butt Weld Valve is a dependable choice for industries requiring secure, leak-proof joints. Its welded ends form a permanent bond with piping, ensuring stable performance even in challenging conditions. The smooth operation enhances system efficiency and safety.

Manufactured with high-strength materials, the valve stands up to demanding usage, offering resistance against wear, corrosion, and pressure fluctuations. This makes it ideal for industrial processes where durability and precision are critical.

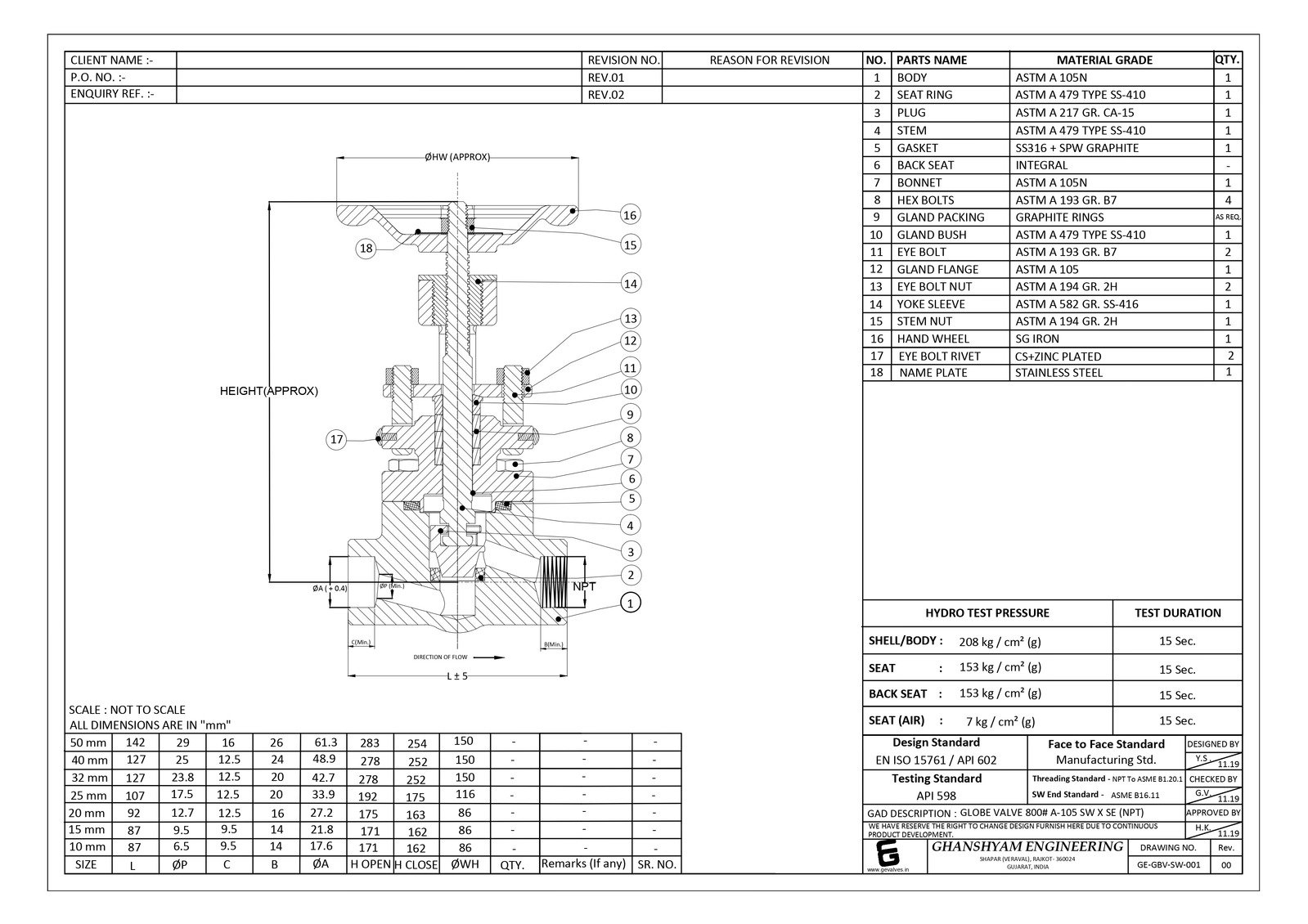

GLOBE VALVE 800#
Size F/F ØP C ØA B H OPEN H CLOSED ØWH
10 87 6.5 9.5 21.8 14 164 152 86
15 87 9.5 9.5 21.8 14 164 152 86
20 92 12.7 12.5 27.2 16 166 153 866
25 106 17.5 12.5 33.9 22 182 164 96
32 127 23 12.5 42.7 22 270 247 150
40 127 28 12.5 48.8 25 270 247 150
50 142 30 16 61.2 26 282 247 150


GLOBE VALVE 1500#
Size F/F C ØA B H OPEN H CLOSED ØWH
10 87 9.5 21.8 14 161 150 86
15 92 9.5 21.8 14 165 152 86
20 106 12.5 27.2 16 180 163 96
25 127 12.5 33.9 22 279 250 150
32 142 12.5 42.7 22 279 250 150
40 142 12.5 48.8 25 290 257 150
50 178 16 61.2 26 368 331 150

GLOBE VALVE 1500#
Size F/F C ØA B H OPEN H CLOSED ØWH
10 106 9.5 21.8 14 192 175 96
15 127 12.5 27.2 16 278 252 150
20 142 12.5 33.9 22 283 254 150
25 142 12.5 42.7 22 281 250 150
32 178 12.5 48.8 25 365 325 150
40
50

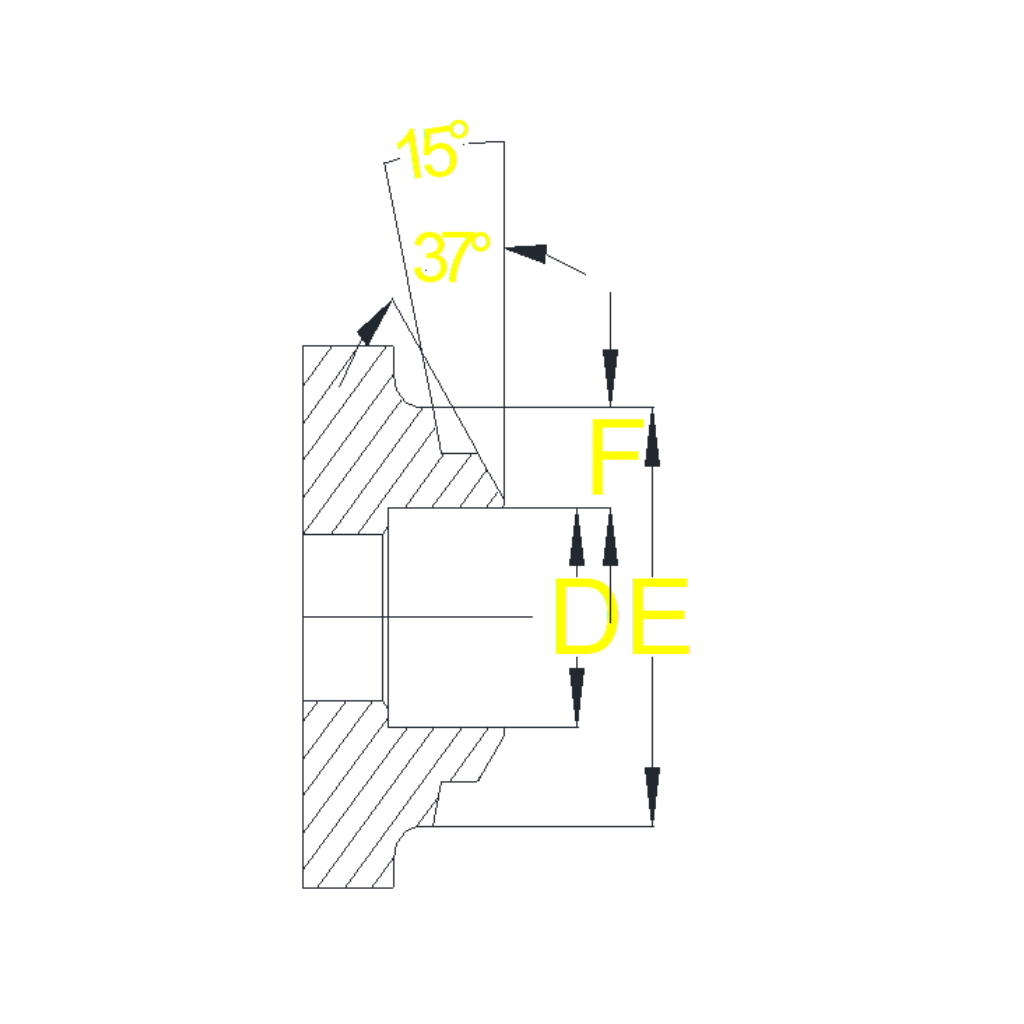

SIZE

BUTT WELD SH-40

BUTT WELD SH-80

BUTT WELD SH-160

D

E

F

D

E

F

D

E

F

15MM

15.8

21.3

2.77

13.87

21.3

3.73

11.79

21.3

4.78

20MM

20.93

26.7

2.87

18.85

26.7

3.91

15.55

26.7

5.56

25MM

26.65

33.4

3.38

24.31

33.4

4.55

20.7

33.4

6.35

32MM

35

42.2

3.56

32.46

42.2

4.85

29.46

42.2

6.35

40MM

40.9

48.3

3.68

38.1

48.3

5.08

34

48.3

7.14

50MM

52.5

60.3

3.91

49.2

60.3

5.54

42.8

60.3

8.74
