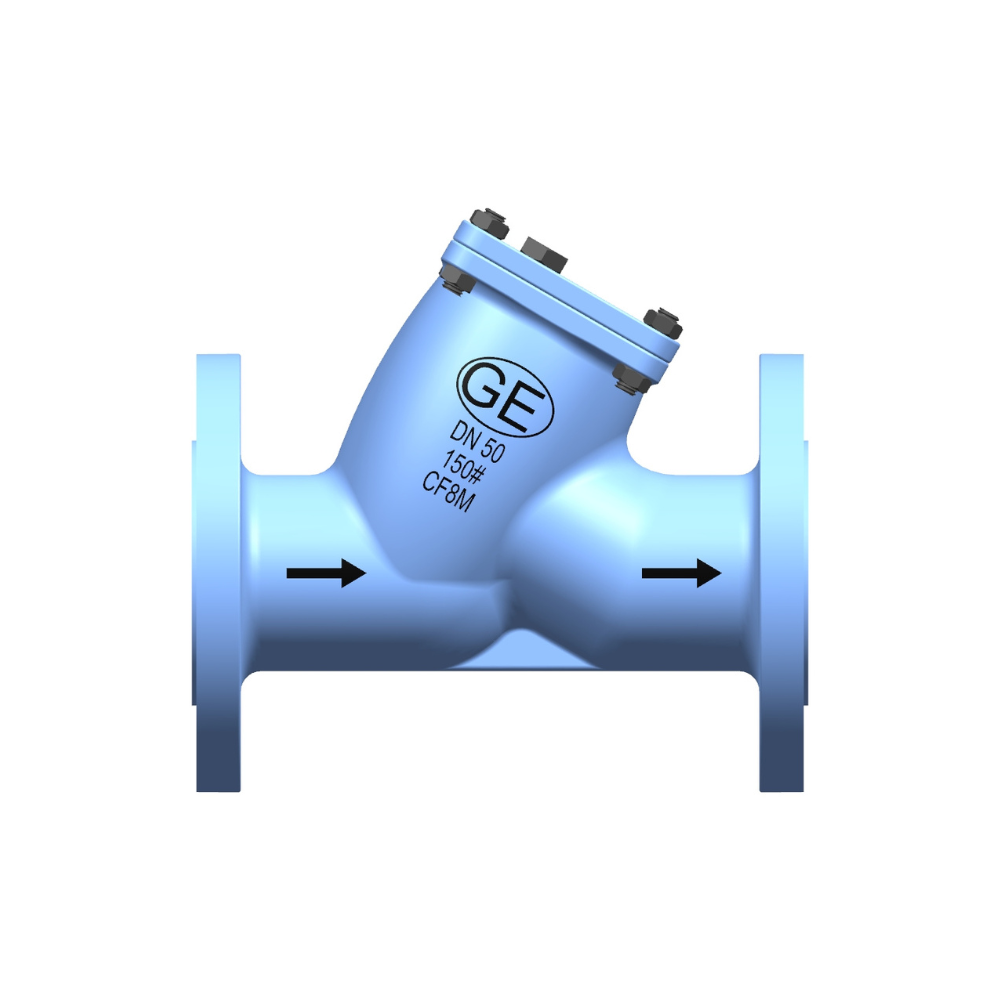

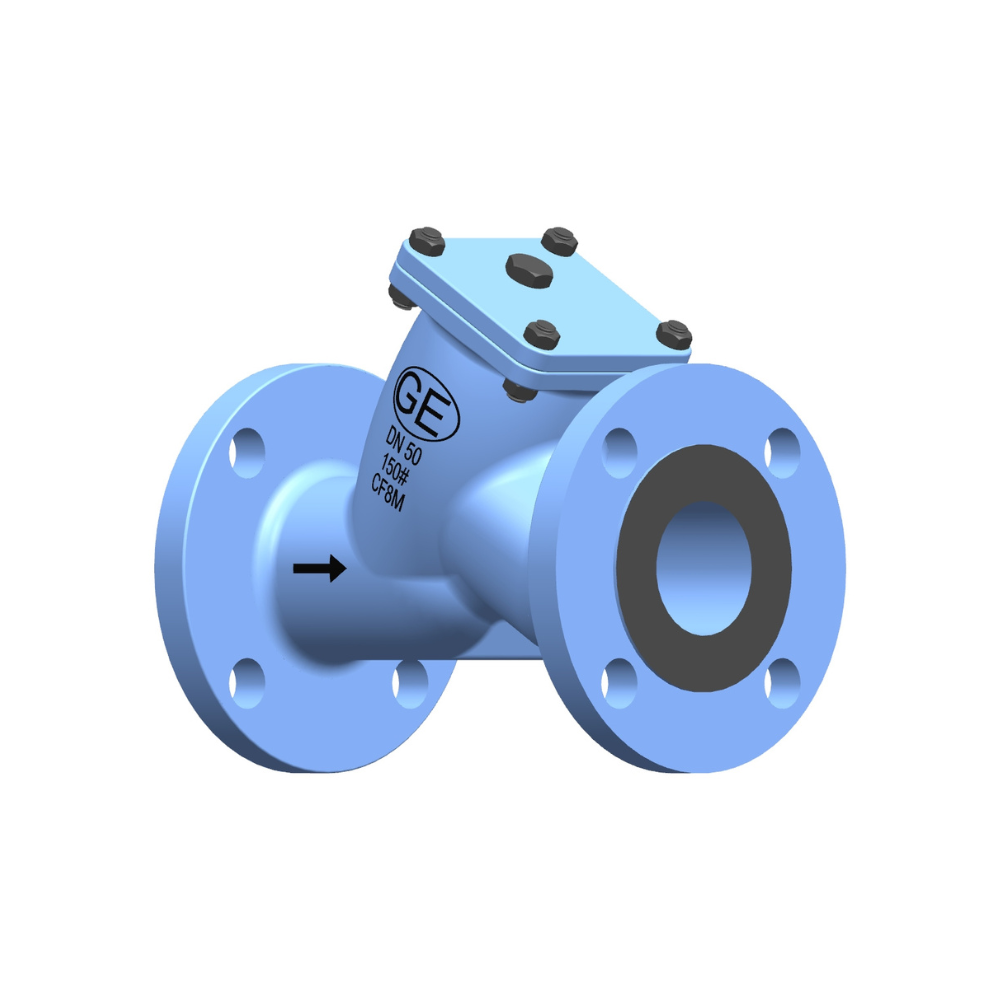

Cast Stainer Flanged Valve

Flanged strainer valve for efficient filtration. Protects equipment from damage and ensures clean flow. Durable, easy to install, and maintain.

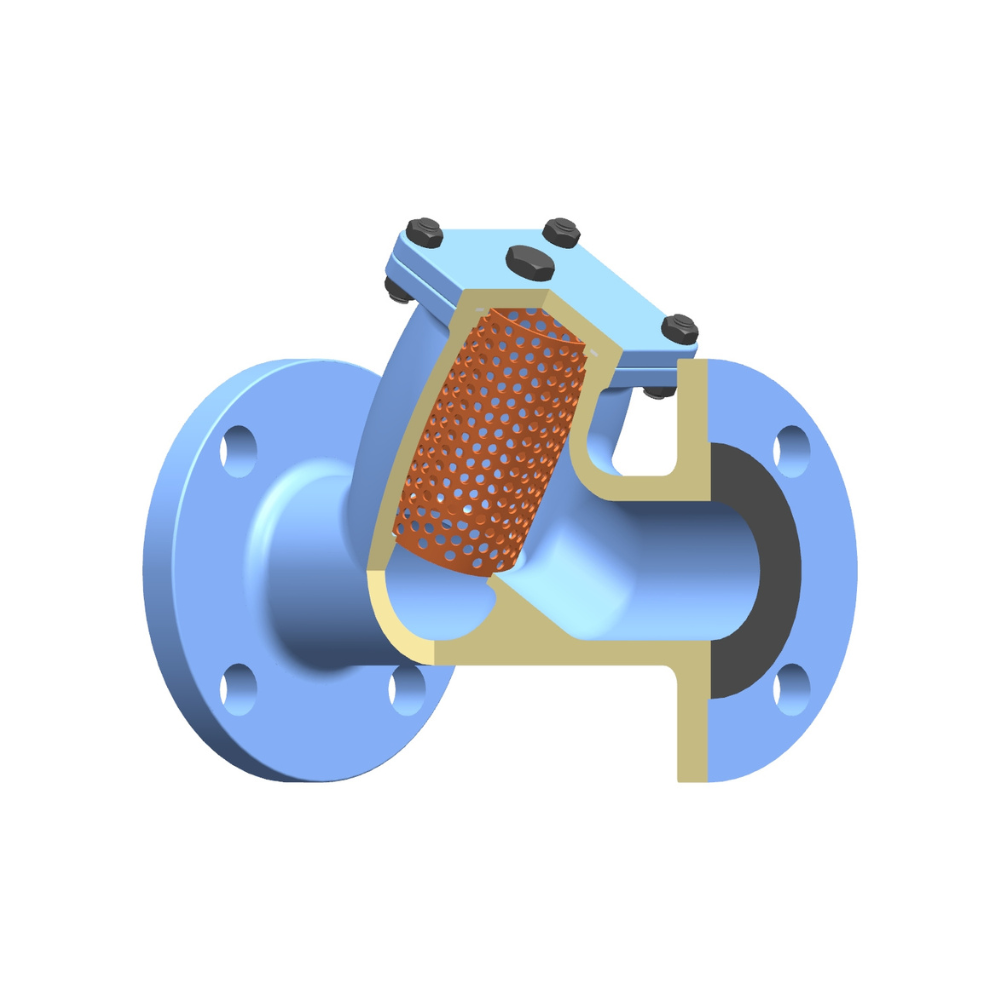

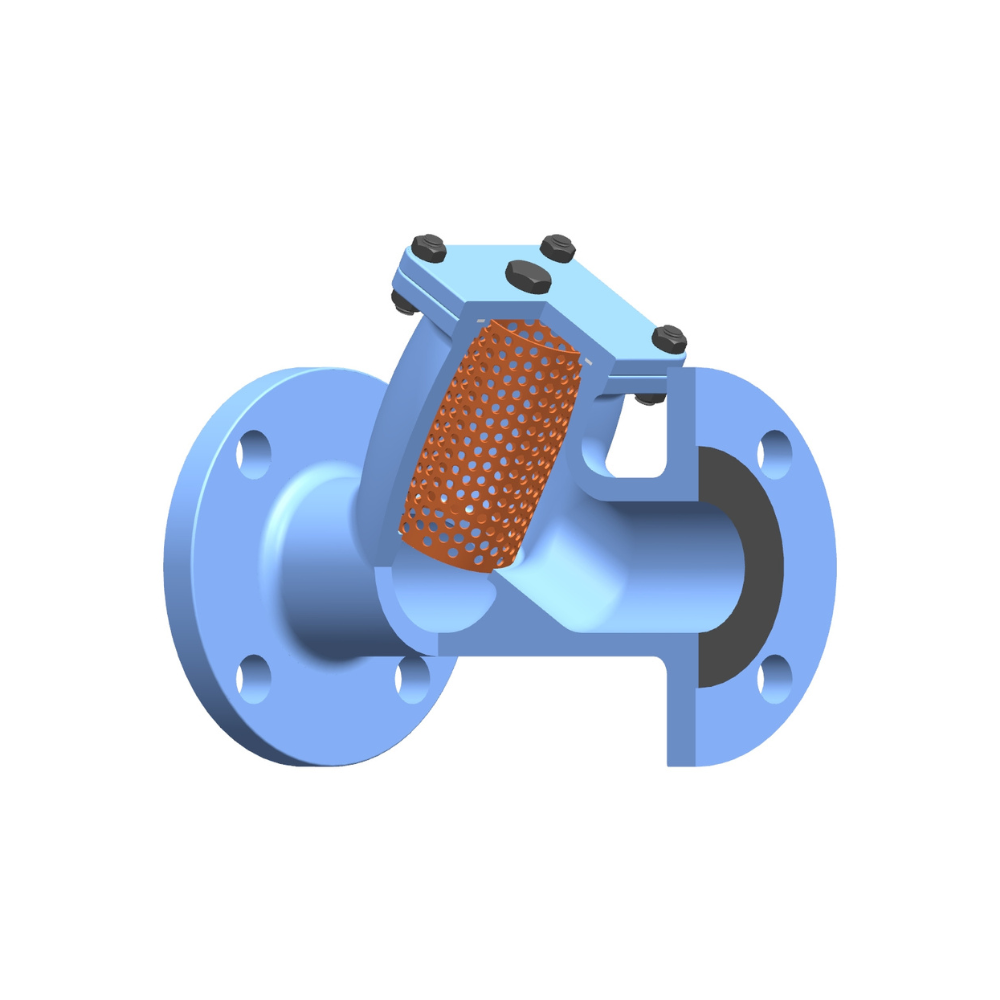

The Cast Strainer Flanged Valve is built to deliver reliable filtration in industrial pipelines. Its flanged ends provide a secure fit and easy installation, while the internal strainer removes solid particles from the fluid stream. This enhances system safety and prolongs equipment life.

Made from durable materials, the valve withstands demanding conditions while maintaining consistent performance. With simple maintenance and robust construction, it is an excellent choice for industries seeking efficiency and protection in their operations.

2PC FB BALL VALVE 150#
SIZE F/F ØP OD FT RF PCD N
15 108 12 90 10 34.9 60.3 4
20 117 18.7 100 10.9 42.9 69.9 4
25 127 24.5 110 11.6 50.8 79.4 4
40 165 38 125 14.7 73 98.4 4
50 178 50 150 16.3 92.1 120.7 4
65 190 62 180 17.9 104.8 139.7 4
80 203 74 190 19.5 127 152.4 4
100 229 100 230 24 157.2 190.5 8
150 267/394 150 279 25.9 215.9 241.3 8
200 292/457 201 343 26.9 269.9 298.5 8
250 330/533 245 406 28.4 323.8 362 12
300 356/610 295 483 30.5 381 431.8 12

2PC FB BALL VALVE 300#
F/F ØP OD FT RF PCD N
140 12 95 12.7 34.9 66.5 4
152 18.7 117 14.2 42.9 82.6 4
165 24.5 124 15.7 50.8 88.9 4
190 38 155 19 73 114.3 4
216 50 165 20.6 92.1 127 8
241 62 190 23.9 104.8 149.4 8
282 74 210 26.9 127 168.1 8
305 100 254 30.2 157.2 200.2 8
403 150 318 35.1 215.9 269.7 12
419/502 201 381 39.6 269.9 330.2 12
457/568 245 444 46 323.8 387.4 16
502/648 295 521 49.3 381 450.8 16

2PC FB BALL VALVE 600#
F/F ØP OD FT RF PCD N


216 24.5 124 17.5 50.8 88.9 4
241 38 155 22.4 73 114.3 4
292 50 165 25.4 92.1 127 8
330 62 190 28.4 104.8 149.4 8
356 74 210 31.8 127 168.1 8
432 100 273 38.1 157.2 215.9 8
559 150 356 47.8 215.9 292.1 12
660 201 419 55.6 269.9 349.2 12
787 245 508 63.5 323.8 431.8 16
838 295 559 66.5 381 489 20

2PC FB BALL VALVE 900#
SIZE F/F ØP OD FT RF PCD N
50 368 50 215 38.1 6.4 165.1 8
65 419 62 245 41.3 6.4 190.5 8
80 381 74 241 38.1 6.4 190.5 8
100 457 100 292 44.4 6.4 235 8
150 610 150 381 55.6 6.4 317.5 12
200 737 201 470 63.5 6.4 393.7 12
250 838 245 546 69.8 6.4 469.9 16
300 965 295 610 79.4 6.4 533.4 20

2PC FB BALL VALVE 1500#
F/F ØP OD FT RF PCD N
368 50 216 38.1 6.4 165.1 8
419 62 244 41.1 6.4 190.5 8
470 74 267 47.8 6.4 203.2 8
546 100 311 53.8 6.4 241.3 8
705 150 394 82.6 6.4 317.5 12
832 201 483 91.9 6.4 393.7 12
991 245 584 108 6.4 482.6 12
1130 295 673 124 6.4 571.5 16
