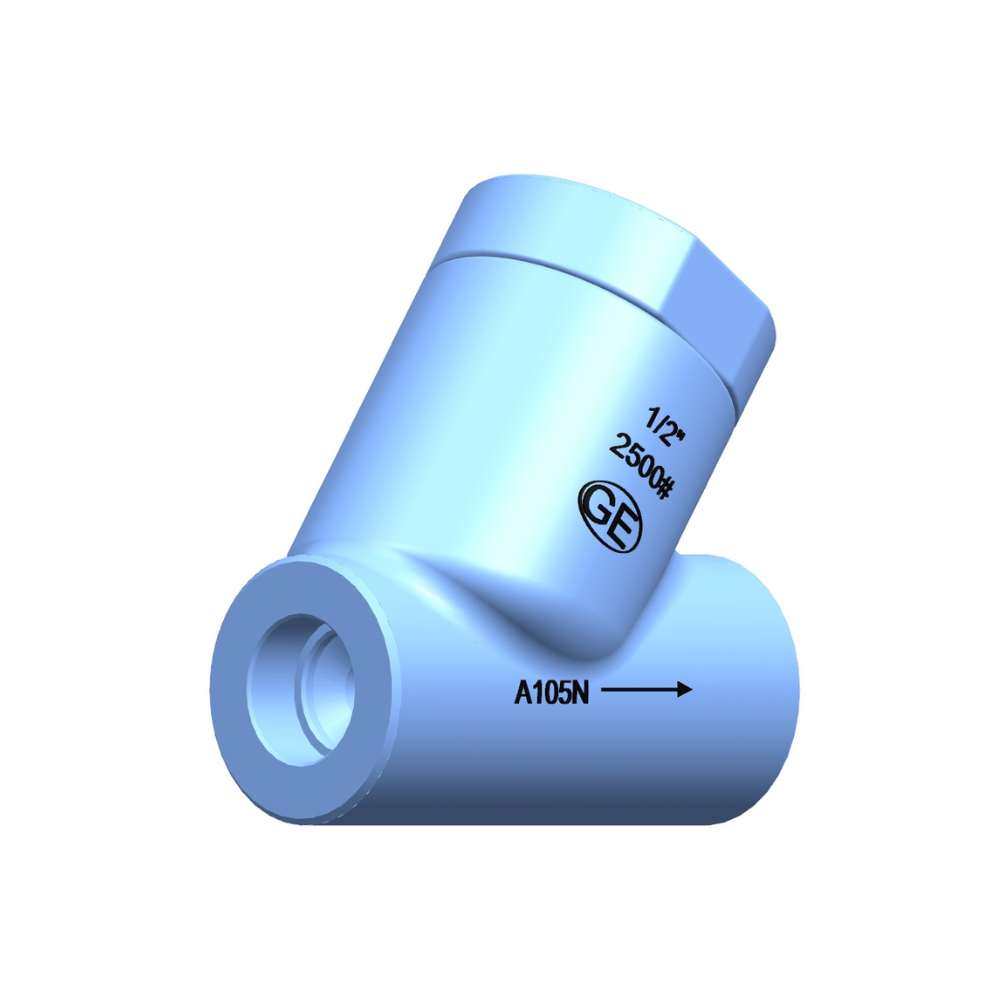

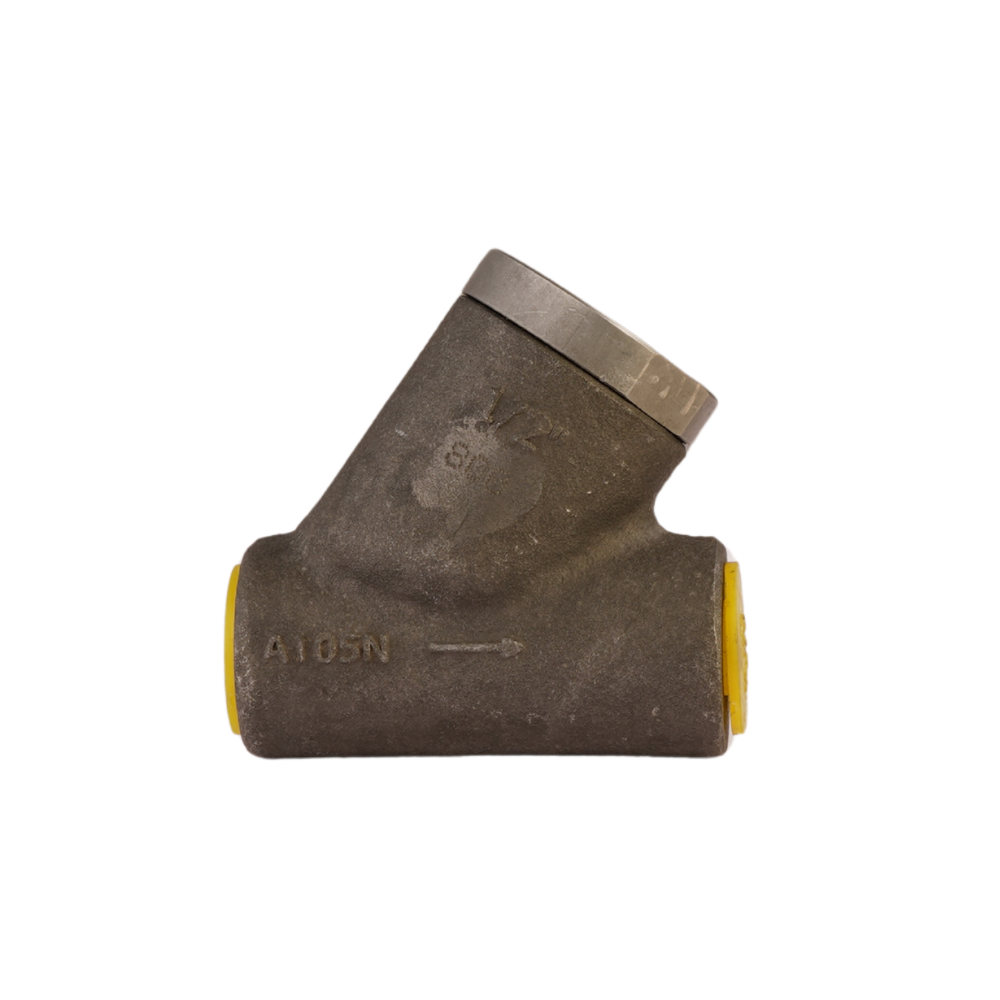

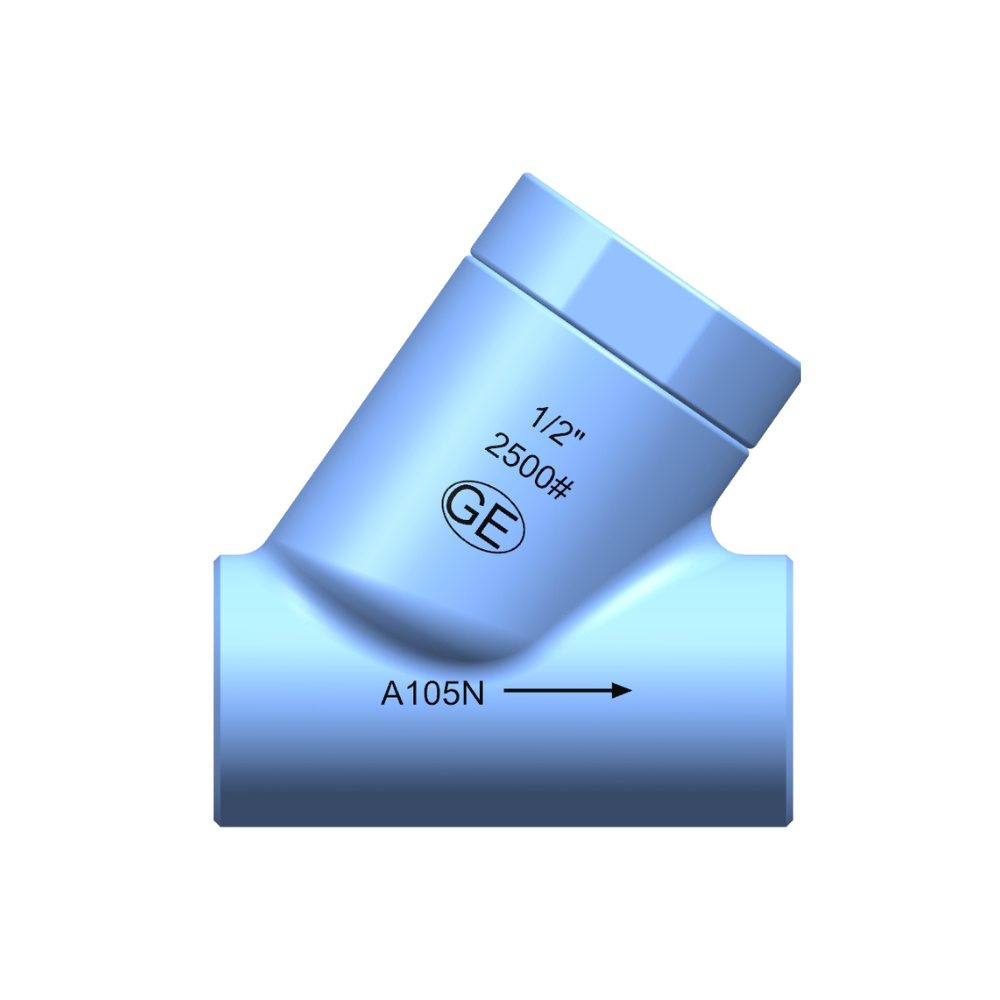

Forge Stainer Buttweld Valve
Strong welded strainer valve for filtering impurities. Ensures clean fluid flow with durable performance. Compact and low-maintenance design.

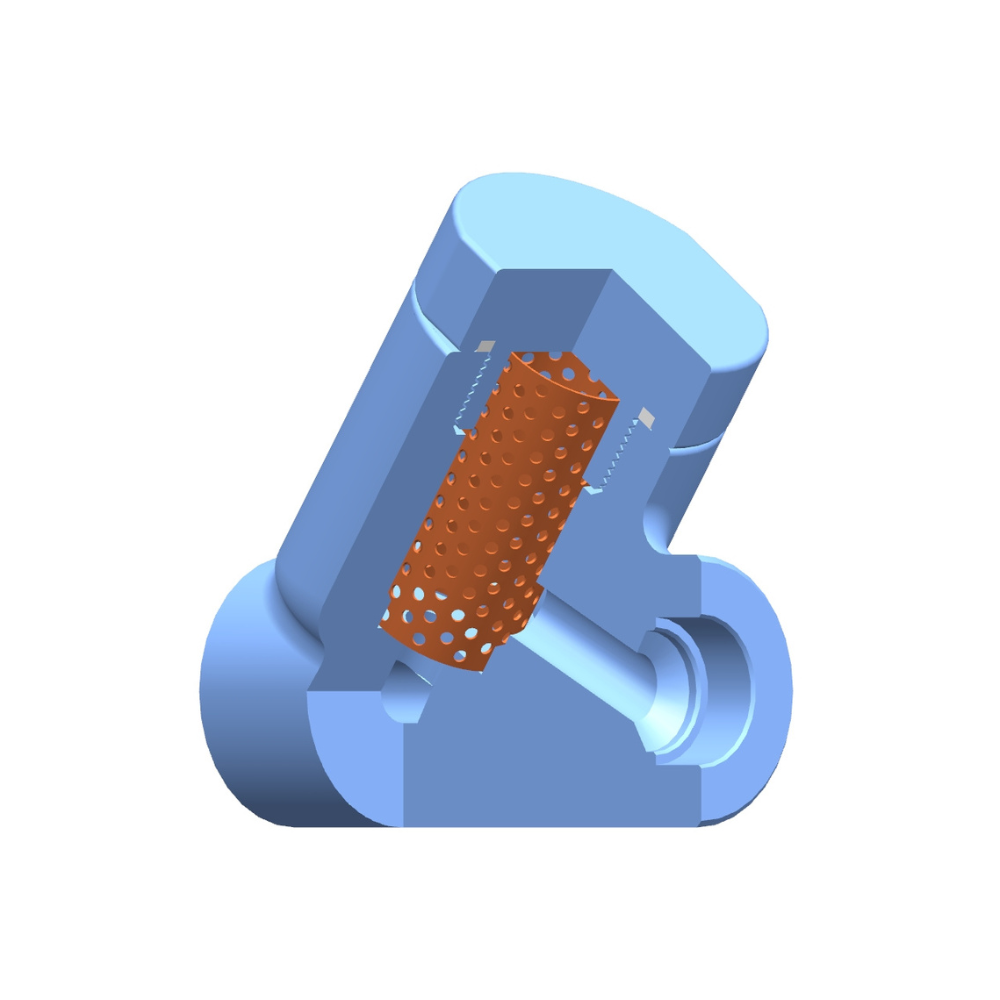

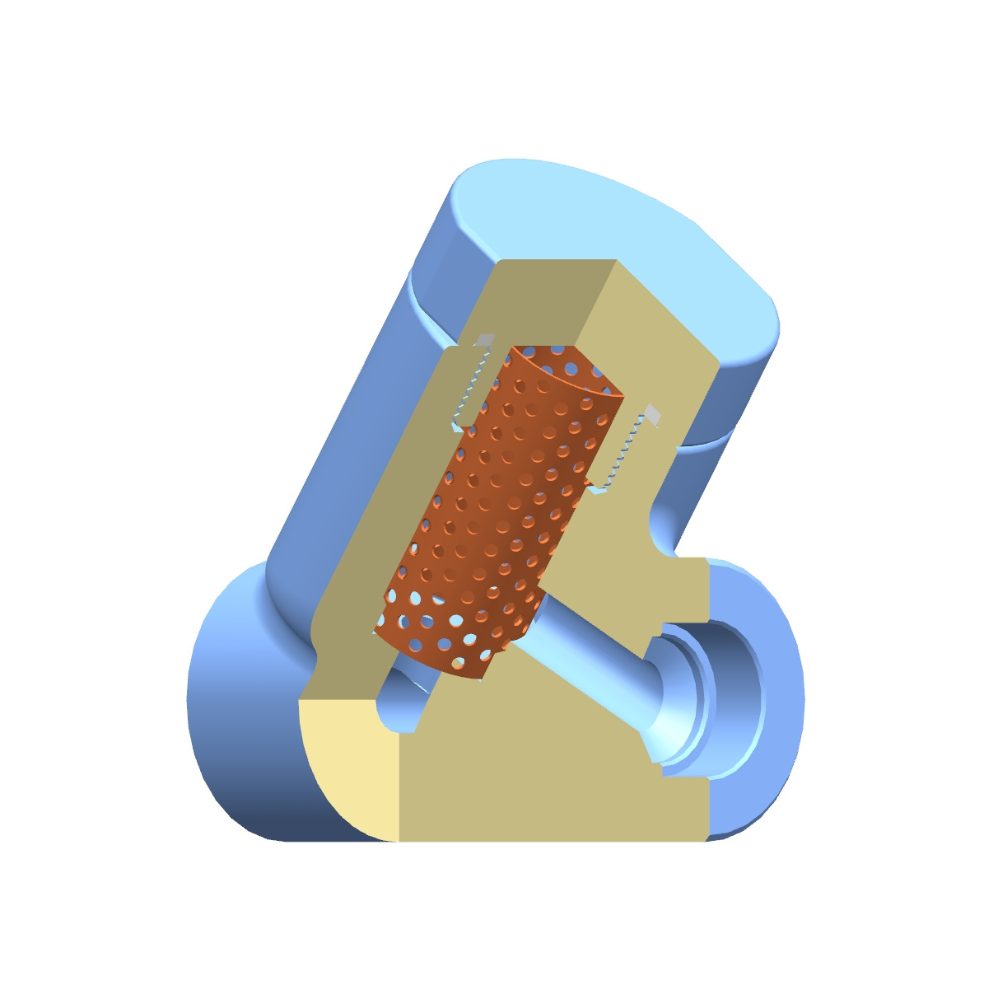

The Forge Strainer Butt Weld Valve combines strength and functionality by providing a secure welded connection along with effective fluid filtration. It captures impurities before they enter the system, protecting downstream equipment and improving overall efficiency.
With its robust construction, this valve ensures reliable operation under pressure while reducing the risk of damage caused by debris. Easy to maintain and long-lasting, it is an ideal choice for industries prioritizing system protection and performance.
|

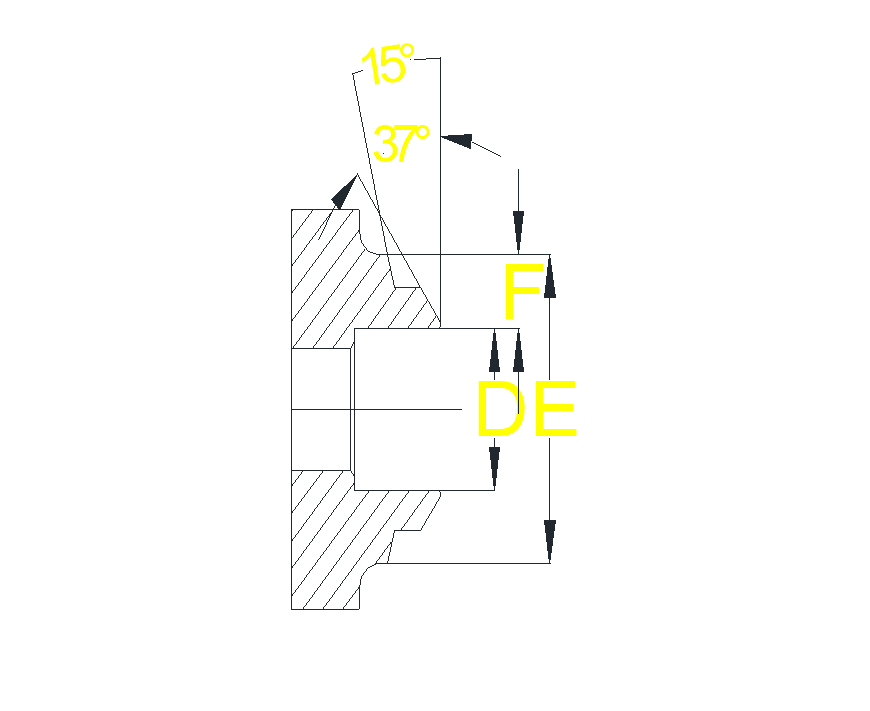

SIZE |
BUTT WELD SH-40 |
BUTT WELD SH-80 |
BUTT WELD SH-160 |
||||||
|
D |
E |
F |
D |
E |
F |
D |
E |
F |
|
|
15MM |
15.8 |
21.3 |
2.77 |
13.87 |
21.3 |
3.73 |
11.79 |
21.3 |
4.78 |
|
20MM |
20.93 |
26.7 |
2.87 |
18.85 |
26.7 |
3.91 |
15.55 |
26.7 |
5.56 |
|
25MM |
26.65 |
33.4 |
3.38 |
24.31 |
33.4 |
4.55 |
20.7 |
33.4 |
6.35 |
|
32MM |
35 |
42.2 |
3.56 |
32.46 |
42.2 |
4.85 |
29.46 |
42.2 |
6.35 |
|
40MM |
40.9 |
48.3 |
3.68 |
38.1 |
48.3 |
5.08 |
34 |
48.3 |
7.14 |
|
50MM |
52.5 |
60.3 |
3.91 |
49.2 |
60.3 |
5.54 |
42.8 |
60.3 |
8.74 |
